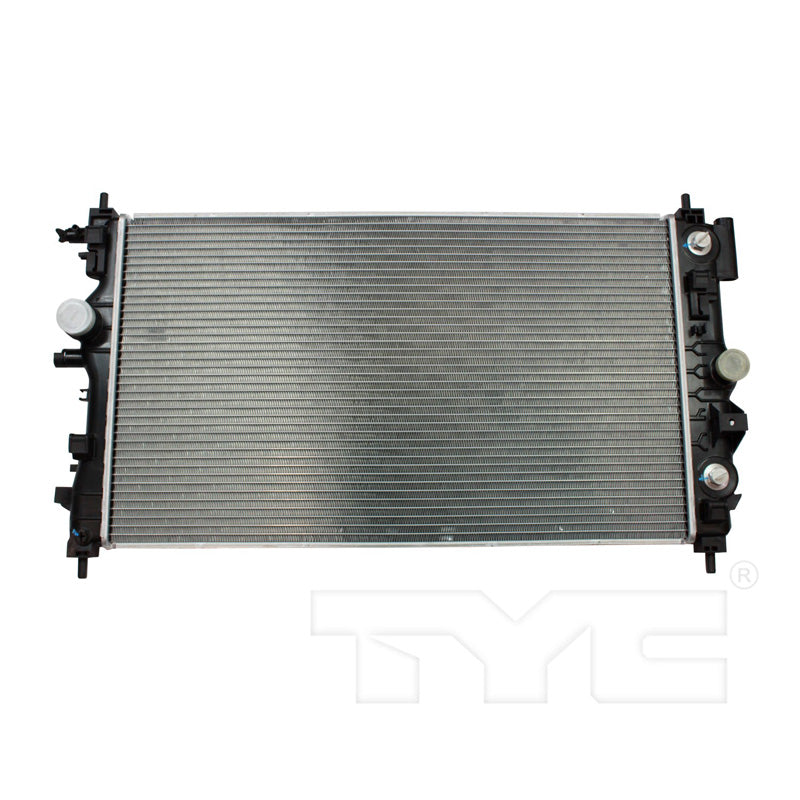

TYC 13197 Radiator Assembly for 2011-2014 Chevrolet Cruze

TYC 13197 Radiator Assembly for 2011-2014 Chevrolet Cruze
    TYC 13197 Radiator Assembly for 2011-2014 Chevrolet Cruze
TYC 13197 Radiator Assembly for 2011-2014 Chevrolet Cruze
Brand: TYC
$260.56 CAD
$260.56 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13197
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Outlet Diameter (in): 1.34
  • Transmission Oil Cooler Included: Yes
  • Tube Width X Height: 26x2
  • Fin Wave Pitch: 2.2
  • Total Fin Row Count: 42
  • Tube Count (every 4"): 11
  • Toc Outlet Type: Quick Connect
  • Fin Wave Height (in): 0.3
  • Flow Configuration: Crossflow
  • Core Material: Aluminum
  • TOC Outlet Diameter (IN): 0.37
  • Outlet Connection Type: Hose Clamp
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Bottom Header: 2.02x16.18
  • Toc Distance (in): 11.50
  • Inlet Diameter (in): 1.52
  • Fin Count (every 4"): 92
  • Total Tube Count: 41
  • Engine Oil Cooler Included: No
  • Core Length (in): 26.77
  • Top Header: 2.02x16.18
  • No. Of Rows: 1
  • Core Height (in): 15.63
  • Core Thickness (in): 1.02
  • Inlet Connection Type: Quick Connect (Spring Lock)
  • TOC Inlet Diameter (IN): 0.37
  • Toc Inlet Type: Quick Connect

Package Details

  • Part Number: 13197
  • 11-14 CV CRZE 1.4L L4 A/MT 1R PA RAD
  • Package L x W x H: 6.57" x 21.46" x 36.97"
  • Package Weight: 14.08 lbs.

Interchanges

  • Chevrolet: 13311079
  • DENSO: 221-9257
  • CSF: 3272
  • Vista Pro: 438218
  • APDI: 8013197
  • Spectra Premium: CU13197
  • Partslink: GM3010541

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2011 Chevrolet Cruze Eco; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary / LTZ; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary w/ TOC 28mm
2012 Chevrolet Cruze Eco; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary / LTZ; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary w/ TOC 28mm
2013 Chevrolet Cruze Eco; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary / LTZ; 1.4L L4 1364cc 83ci; Sedan; Automatic, Primary w/ TOC 28mm
2014 Chevrolet Cruze Eco; 1.4L L4 1364cc 83ci; Sedan; 1.4L L4 1364cc 83ci, Primary / LS; 1.8L L4 1796cc 110ci; Sedan; 1.8L L4 1796cc 110ci, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; 1.4L L4 1364cc 83ci, Primary / LTZ; 1.4L L4 1364cc 83ci; Sedan; 1.4L L4 1364cc 83ci, Primary 1st Design; w/ TOC 28mm

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13197.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
