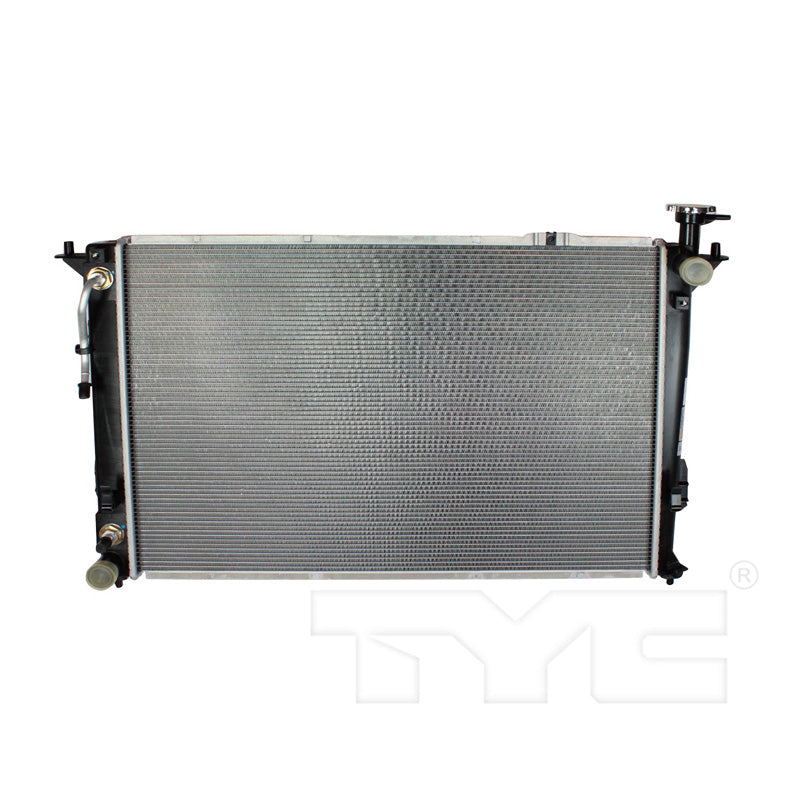

TYC 13194 Radiator Assembly for 2010-2013 Hyundai Santa Fe
Brand: TYC
- Regular price
- $272.57 CAD
- Sale price
- $272.57 CAD
- Regular price
-
Shipping calculated at checkout.
SKU:13194
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...
Product Description
Performance Overview
OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.
Key Features
Specifications
- TOC Outlet Diameter (IN): 0.39
- Tube Width X Height: 16x1.5
- Core Height (in): 18.62
- Engine Oil Cooler Included: No
- Outlet Diameter (in): 1.38
- Flow Configuration: Crossflow
- Inlet Diameter (in): 1.38
- Transmission Oil Cooler Included: Yes
- Fin Count (every 4"): 78
- Core Material: Aluminum
- Total Tube Count: 72
- Core Length (in): 26.38
- Top Header: 1.83x19.31
- Fin Wave Height (in): 0.2
- Bottom Header: 1.83x19.31
- Transmission Oil Cooler Type: Plate Oil Cooler
- Total Fin Row Count: 73
- Toc Inlet Type: Tube fitting
- Toc Distance (in): 14.57
- Fin Wave Pitch: 2.6
- Outlet Connection Type: Hose Clamp
- Core Thickness (in): 0.63
- No. Of Rows: 1
- Toc Outlet Type: Tube fitting
- Inlet Connection Type: Hose Clamp
- TOC Inlet Diameter (IN): 0.39
- Tube Count (every 4"): 16
Package Details
- Part Number: 13194
- 11-15 KA SRNTO 2.4/3.5L L4/V6 A/MT 1R PA(w/ TOC)RAD
- Package L x W x H: 6.57" x 25.04" x 36.38"
- Package Weight: 13.64 lbs.
Interchanges
- Performance Radiator: 1915
- CSF: 1998
- DENSO: 221-9526
- Kia: 25310-1U250
- Hyundai: 25310-1U250
- CSF: 3287
- CSF: 3293
- Vista Pro: 438481
- APDI: 8013194
- Spectra Premium: CU13194
- Partslink: HY3010170
Vehicle Fitment Table
| Year | Make | Model | Position | Fitment Precision | Note |
| 2010 | Hyundai | Santa Fe | Limited; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / SE; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary | w/ Auto A/C | |
| 2011 | Hyundai | Santa Fe | GLS; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary | w/ Auto A/C | |
| 2011 | Hyundai | Santa Fe | Limited; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / SE; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary | w/ Auto A/C | |
| 2012 | Hyundai | Santa Fe | GLS; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary | w/ Auto A/C | |
| 2012 | Hyundai | Santa Fe | Limited; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / SE; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary | w/ Auto A/C | |
| 2011 | Kia | Sorento | EX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / LX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / SX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary | ||
| 2012 | Kia | Sorento | EX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / LX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / SX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary | ||
| 2013 | Kia | Sorento | EX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / LX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary / SX; 3.5L V6 3470cc; Sport Utility; 3.5L V6 3470cc, Primary |
FAQ
Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.
What part number is this?
The listed part number is 13194.
Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.
Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
