Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Core Height (in): 17.57
• Tube Count (every 4"): 12
• Total Fin Row Count: 54
• Inlet Diameter (in): 1.5
• Core Length (in): 28.74
• Flow Configuration: Crossflow
• Transmission Oil Cooler Included: No
• Top Header: 1.97x18.47
• Fin Wave Height (in): 0.25
• Core Thickness (in): 1.02
• Bottom Header: 1.97x18.47
• Outlet Diameter (in): 1.5
• Outlet Connection Type: Hose Clamp
• Fin Count (every 4"): 92
• Tube Width X Height: 26x2
• Engine Oil Cooler Included: No
• Total Tube Count: 53
• Inlet Connection Type: Hose Clamp
• Core Material: Aluminum
• Fin Wave Pitch: 2.2
• No. Of Rows: 1

Package Details

• Part Number: 13143

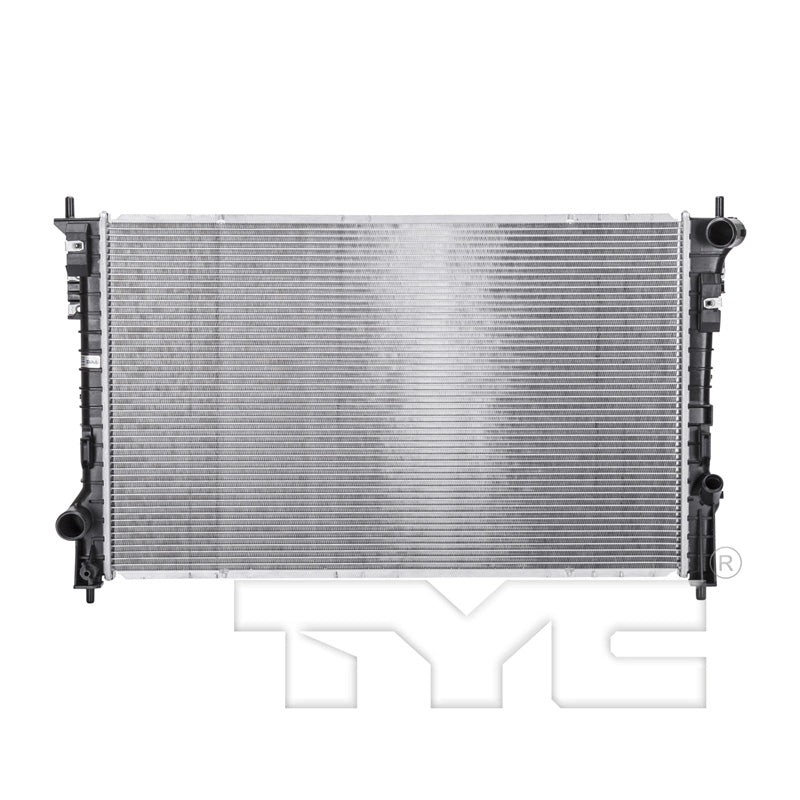

• 13-15 FD E-DGE 3.5/3.7L V6 AT 1R PA RAD
• Package L x W x H: 21.85" x 6.10" x 35.83"
• Package Weight: 13.23 lbs.

Interchanges

• Silla Cooling: 2261
• Ford: 7T4Z 8005 A
• APDI: 8012937
• Spectra Premium: CU13143
• Lincoln: DT4Z 8005 A
• Ford: DT4Z 8005 A
• Partslink: FO3010291

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13143.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
