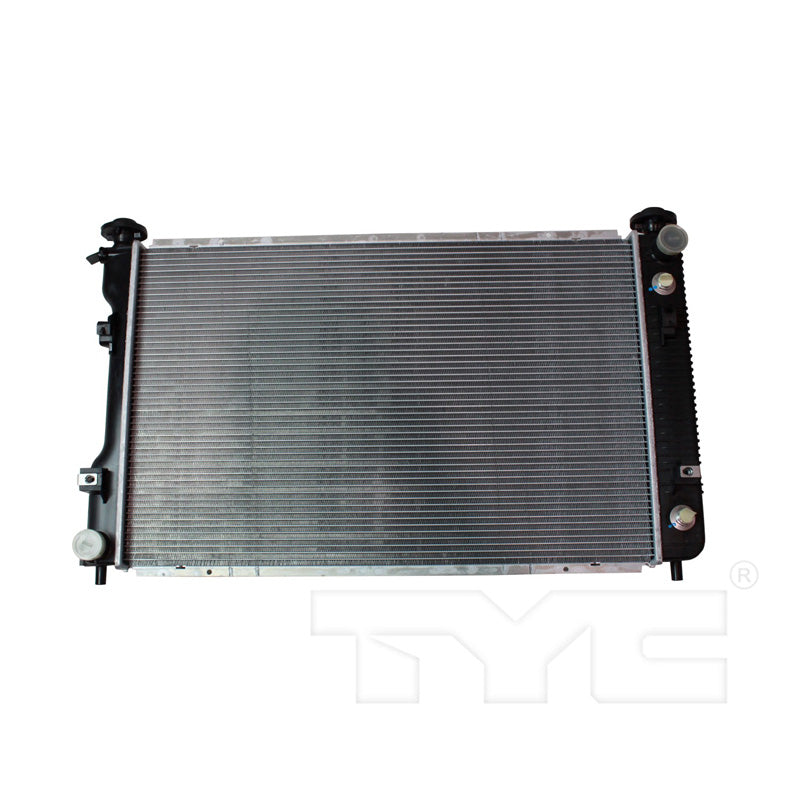

TYC 13140 Radiator Assembly for 2010-2017 Chevrolet Equinox

TYC 13140 Radiator Assembly for 2010-2017 Chevrolet Equinox
    TYC 13140 Radiator Assembly for 2010-2017 Chevrolet Equinox
TYC 13140 Radiator Assembly for 2010-2017 Chevrolet Equinox
Brand: TYC
$251.68 CAD
$251.68 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13140
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Transmission Oil Cooler Included: Yes
  • Fin Wave Height (in): 0.25
  • Inlet Connection Type: Hose Clamp
  • Flow Configuration: Crossflow
  • Toc Outlet Type: Quick Connect
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Toc Inlet Type: Quick Connect
  • Engine Oil Cooler Included: No
  • No. Of Rows: 1
  • Core Material: Aluminum
  • Core Height (in): 16.59
  • Total Tube Count: 50
  • Bottom Header: 2.54x17.23
  • Outlet Connection Type: Hose Clamp
  • Core Length (in): 25.94
  • TOC Inlet Diameter (IN): 0.37
  • TOC Outlet Diameter (IN): 0.37
  • Inlet Diameter (in): 1.32
  • Total Fin Row Count: 51
  • Tube Width X Height: 16x2
  • Fin Wave Pitch: 2.2
  • Toc Distance (in): 12.01
  • Outlet Diameter (in): 1.34
  • Top Header: 2.54x17.23
  • Core Thickness (in): 0.63
  • Tube Count (every 4"): 12
  • Fin Count (every 4"): 92

Package Details

  • Part Number: 13140
  • 10-17 CV EQINX 2.4L L4 AT 1R PA(w/TOC)RAD
  • Package L x W x H: 7.17" x 22.09" x 34.02"
  • Package Weight: 13.64 lbs.

Interchanges

  • GMC: 25952759
  • Chevrolet: 25952759
  • CSF: 3413
  • Vista Pro: 438220
  • APDI: 8013103
  • Silla Cooling: 9546
  • Spectra Premium: CU13103
  • Performance Radiator: CU13140
  • Partslink: GM3010532

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2010 Chevrolet Equinox LS; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / LT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2010 Chevrolet Equinox LTZ; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2011 Chevrolet Equinox LS; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / LT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2011 Chevrolet Equinox LTZ; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2012 Chevrolet Equinox LS; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / LT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2012 Chevrolet Equinox LTZ; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2013 Chevrolet Equinox LS; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / LT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2013 Chevrolet Equinox LTZ; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2014 Chevrolet Equinox LS; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / LT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2014 Chevrolet Equinox LTZ; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2015 Chevrolet Equinox L; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2015 Chevrolet Equinox LS; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / LT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2015 Chevrolet Equinox LTZ; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2016 Chevrolet Equinox L; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2016 Chevrolet Equinox LS; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / LT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2016 Chevrolet Equinox LTZ; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2017 Chevrolet Equinox L; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2017 Chevrolet Equinox LS; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / LT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2017 Chevrolet Equinox Premier; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2010 GMC Terrain SLE; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / SLT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2011 GMC Terrain SLE; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / SLT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2012 GMC Terrain SLE; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / SLT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2013 GMC Terrain Denali; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2013 GMC Terrain SLE; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / SLT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2014 GMC Terrain Denali; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2014 GMC Terrain SLE; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / SLT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2015 GMC Terrain Denali; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2015 GMC Terrain SL; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2015 GMC Terrain SLE; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / SLT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2016 GMC Terrain Denali; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2016 GMC Terrain SL; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2016 GMC Terrain SLE; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / SLT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2017 GMC Terrain Denali; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2017 GMC Terrain SL; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary
2017 GMC Terrain SLE; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary / SLT; 2.4L L4 2384cc 145ci; Sport Utility; 2.4L L4 2384cc 145ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13140.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
