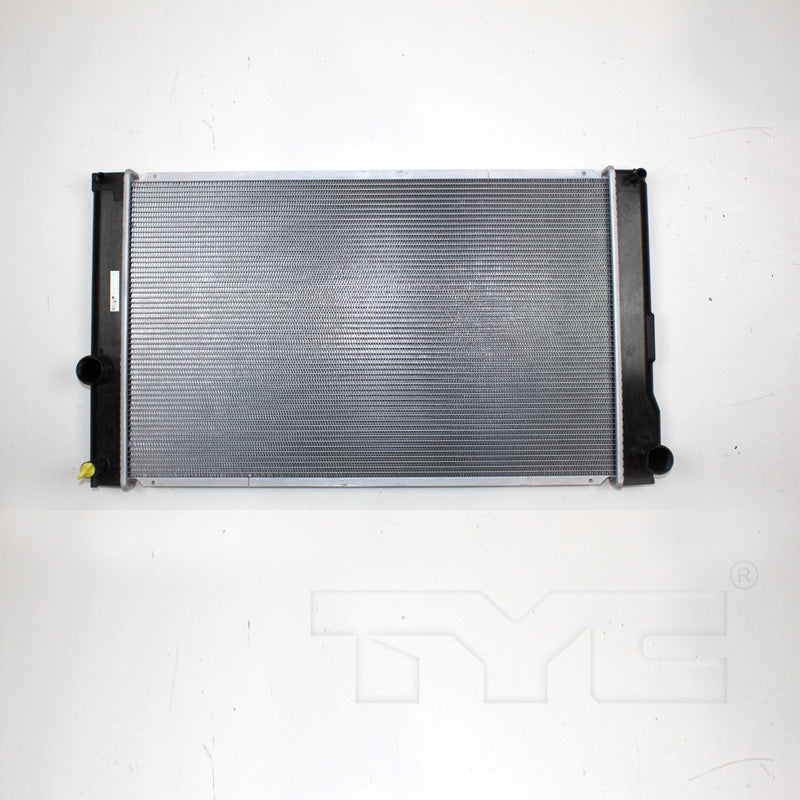

TYC 13119 Radiator Assembly for 2010-2016 Lexus CT200h

TYC 13119 Radiator Assembly for 2010-2016 Lexus CT200h
    TYC 13119 Radiator Assembly for 2010-2016 Lexus CT200h
TYC 13119 Radiator Assembly for 2010-2016 Lexus CT200h
Brand: TYC
$178.19 CAD
$178.19 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13119
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Fin Count (every 4"): 78
  • Total Fin Row Count: 57
  • Core Thickness (in): 0.63
  • Top Header: 1.69x15.88
  • Transmission Oil Cooler Included: No
  • Core Material: Aluminum
  • Flow Configuration: Crossflow
  • No. Of Rows: 1
  • Outlet Diameter (in): 1.34
  • Outlet Connection Type: Hose Clamp
  • Bottom Header: 1.69x15.88
  • Tube Width X Height: 16x1.5
  • Fin Wave Height (in): 0.2
  • Inlet Diameter (in): 1.34
  • Engine Oil Cooler Included: No
  • Inlet Connection Type: Hose Clamp
  • Core Length (in): 23.62
  • Fin Wave Pitch: 2.6
  • Core Height (in): 14.53
  • Total Tube Count: 56
  • Tube Count (every 4"): 16

Package Details

  • Part Number: 13119
  • 10-15 TY PRUS 1.8L L4 AT 1R PA RAD
  • Package L x W x H: 17.32" x 5.12" x 29.53"
  • Package Weight: 7.50 lbs.

Interchanges

  • Toyota: 16400-37230
  • Lexus: 16400-37230
  • DENSO: 221-3143
  • CSF: 3506
  • Vista Pro: 438422
  • APDI: 8013119
  • Silla Cooling: 8297
  • Spectra Premium: CU13119
  • Partslink: TO3010325

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2014 Lexus CT200h Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / F Sport; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary From 06/2014
2015 Lexus CT200h Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / F Sport; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2016 Lexus CT200h Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / F Sport; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2010 Toyota Prius Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2011 Toyota Prius Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2012 Toyota Prius Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2012 Toyota Prius Five; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Four; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Three; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Two; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2013 Toyota Prius Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2013 Toyota Prius Five; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Four; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Three; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Two; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2014 Toyota Prius Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2014 Toyota Prius Five; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Four; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Three; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Two; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2015 Toyota Prius Base; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2015 Toyota Prius Five; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Four; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Three; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Two; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2015 Toyota Prius One; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary / Persona Series; 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2012 Toyota Prius Plug-In 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2013 Toyota Prius Plug-In 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2014 Toyota Prius Plug-In 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary
2015 Toyota Prius Plug-In 1.8L L4 1798cc 110ci; Hatchback; 1.8L L4 1798cc 110ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13119.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
