Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Outlet Diameter (in): 1.36
• No. Of Rows: 1
• Fin Wave Pitch: 2.6
• Transmission Oil Cooler Included: No
• Core Thickness (in): 1.02
• Core Material: Aluminum
• Inlet Diameter (in): 1.36
• Tube Count (every 4"): 16
• Total Tube Count: 79
• Core Length (in): 23.62
• Core Height (in): 20.41
• Top Header: 2.02x21.55
• Tube Width X Height: 26x1.5
• Bottom Header: 2.02x21.55
• Outlet Connection Type: Hose Clamp
• Engine Oil Cooler Included: No
• Fin Wave Height (in): 0.2
• Total Fin Row Count: 80
• Accessories Included: Hose Rubber and clamp (Diam. 2.) x 1
• Inlet Connection Type: Hose Clamp
• Flow Configuration: Crossflow
• Fin Count (every 4"): 78

Package Details

• Part Number: 13113

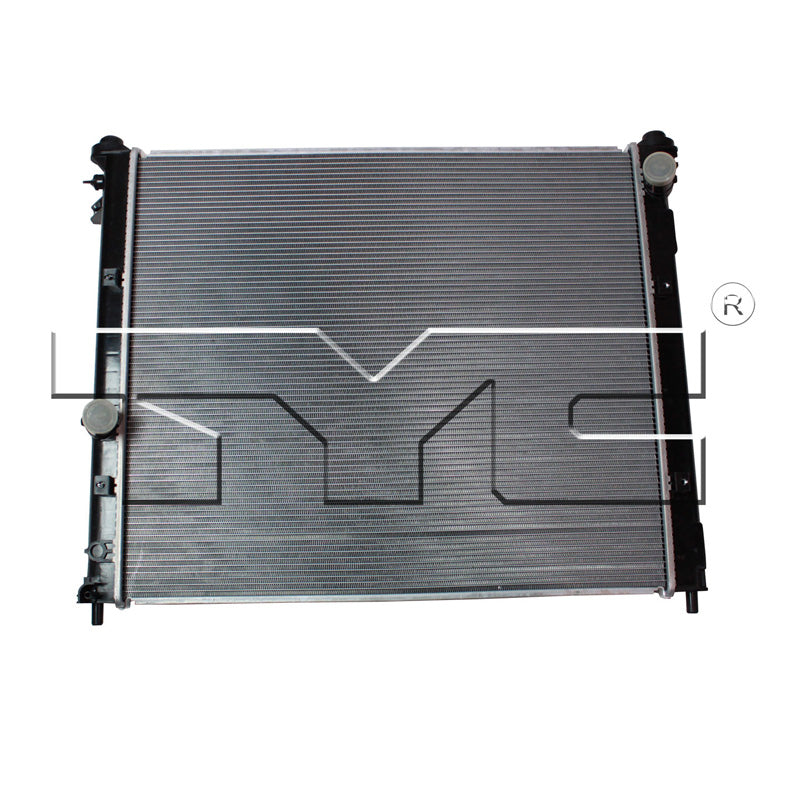

• 08-09 CD S.R.X 4.6L V8 AT 1R PA(w/o TOW)RAD
• Package L x W x H: 6.57" x 25.67" x 31.61"
• Package Weight: 13.42 lbs.

Interchanges

• Cadillac: 19130399
• DENSO: 221-9241
• APDI: 8013114
• Spectra Premium: CU13113
• Partslink: GM3010536

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13113.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
