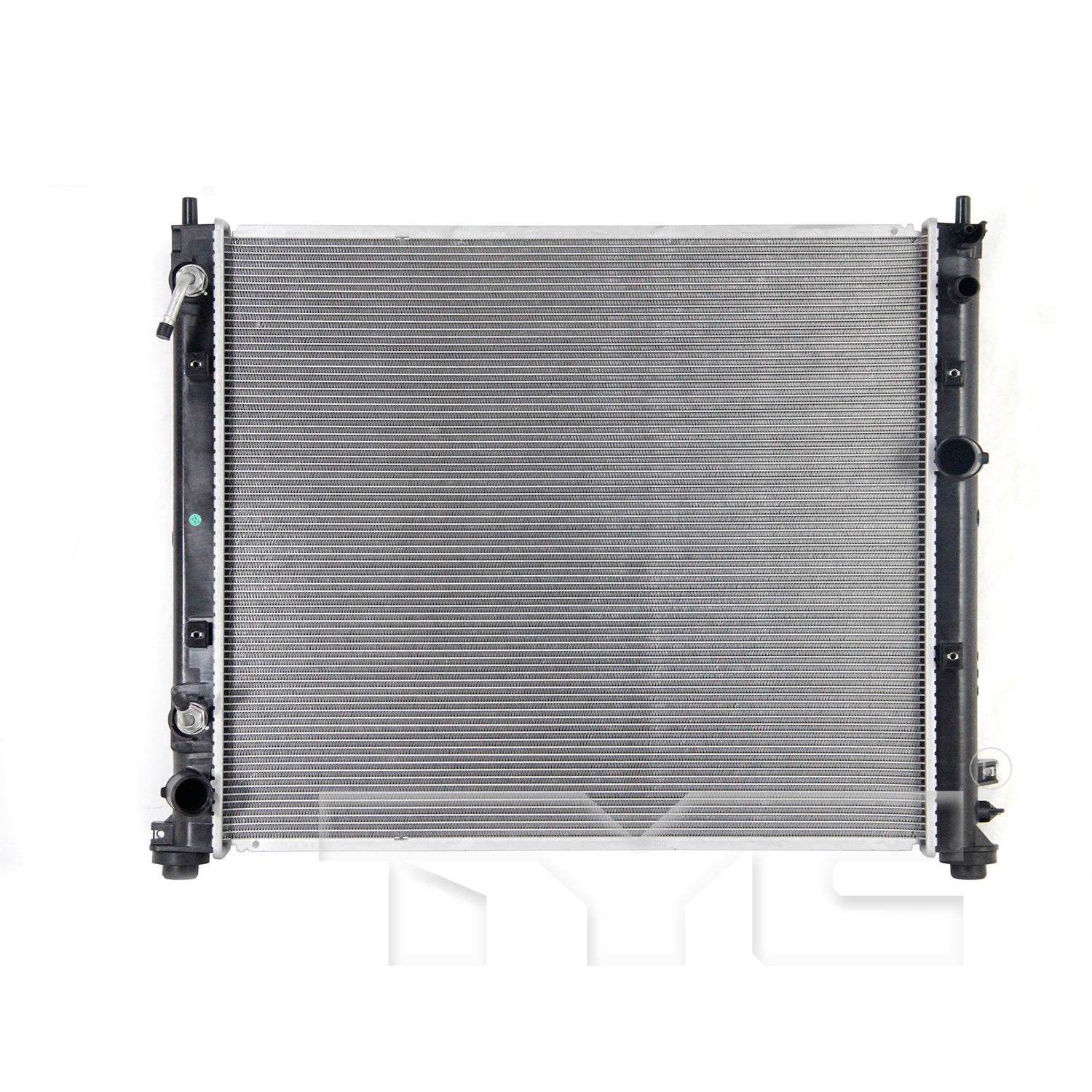

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Outlet Connection Type: Hose Clamp
• Core Material: Aluminum
• Inlet Diameter (in): 1.36
• Fin Wave Height (in): 0.2
• TOC Inlet Diameter (IN): 0.37
• Fin Count (every 4"): 68
• Top Header: 2.02x21.55
• Inlet Connection Type: Hose Clamp
• Core Length (in): 23.62
• Transmission Oil Cooler Included: Yes
• Bottom Header: 2.02x21.55
• Engine Oil Cooler Included: No
• Tube Width X Height: 16x1.5
• Transmission Oil Cooler Type: Plate Oil Cooler
• Core Thickness (in): 0.63
• Toc Outlet Type: Quick Connect
• Outlet Diameter (in): 1.36
• Toc Distance (in): 14.76
• Tube Count (every 4"): 16
• Total Tube Count: 79
• No. Of Rows: 1
• Flow Configuration: Crossflow
• Total Fin Row Count: 80
• Fin Wave Pitch: 3
• TOC Outlet Diameter (IN): 0.37
• Toc Inlet Type: Quick Connect
• Core Height (in): 20.41

Package Details

• Part Number: 13112
• 08-11 CD S.T.S 3.6L V6 AT (w/ TOC) 1R PA RAD (AF/13111)
• Package L x W x H: 25.59" x 5.91" x 30.51"
• Package Weight: 12.21 lbs.

Interchanges

• DPI (DataPoint Inc): 13112
• Cadillac: 19130357
• DENSO: 221-9240
• APDI: 8013111
• APDI: 8013112
• Spectra Premium: CU13112
• Partslink: GM3010550

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13112.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
