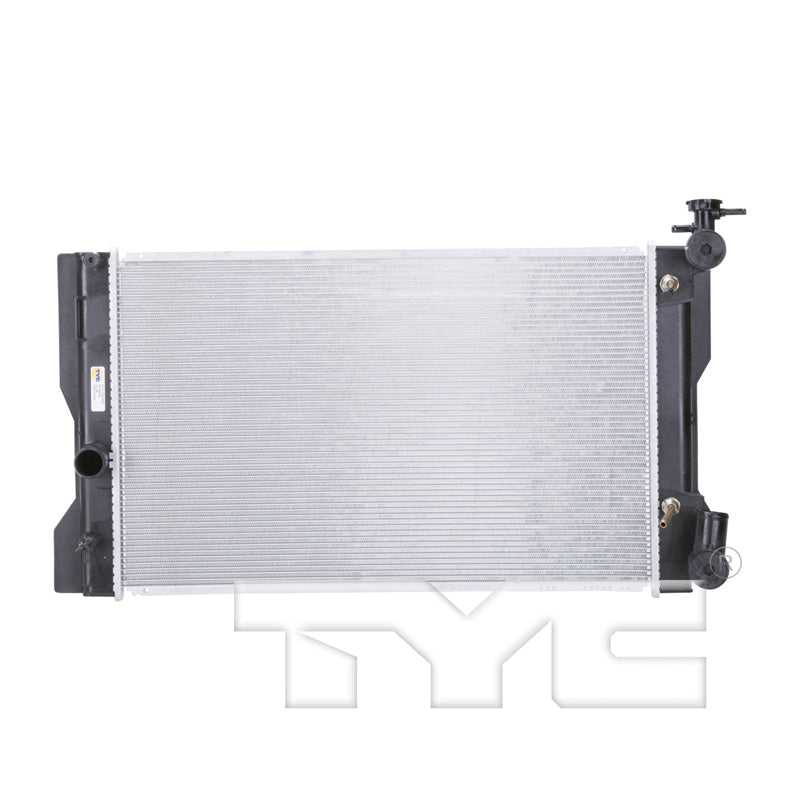

TYC 13106 Radiator Assembly for 2009-2016 Pontiac Vibe

TYC 13106 Radiator Assembly for 2009-2016 Pontiac Vibe
    TYC 13106 Radiator Assembly for 2009-2016 Pontiac Vibe
TYC 13106 Radiator Assembly for 2009-2016 Pontiac Vibe
Brand: TYC
$167.99 CAD
$167.99 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13106
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Fin Count (every 4"): 85
  • TOC Outlet Diameter (IN): 0.31
  • No. Of Rows: 1
  • Inlet Diameter (in): 1.38
  • Accessories Included: Pipe M12*P1.0*2
  • Outlet Connection Type: Hose Clamp
  • Core Height (in): 14.53
  • TOC Inlet Diameter (IN): 0.31
  • Bottom Header: 1.69x15.88
  • Total Fin Row Count: 57
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Toc Inlet Type: Tube fitting
  • Total Tube Count: 56
  • Outlet Diameter (in): 1.38
  • Core Thickness (in): 0.63
  • Fin Wave Height (in): 0.2
  • Top Header: 1.43x15.84
  • Core Material: Aluminum
  • Flow Configuration: Crossflow
  • Engine Oil Cooler Included: No
  • Toc Distance (in): 9.84
  • Transmission Oil Cooler Included: Yes
  • Core Length (in): 23.62
  • Inlet Connection Type: Hose Clamp
  • Tube Count (every 4"): 16
  • Fin Wave Pitch: 2.4
  • Toc Outlet Type: Tube fitting
  • Tube Width X Height: 16x1.5

Package Details

  • Part Number: 13106
  • 09-19 TY CROLA/MTRX 1.8L L4 A/MT 1R PA(w/TOC)RAD
  • Package L x W x H: 19.45" x 5.90" x 32.23"
  • Package Weight: 8.66 lbs.

Interchanges

  • Toyota: 16410-0T031
  • Pontiac: 19205591
  • DENSO: 221-3159
  • Performance Radiator: 2515
  • CSF: 3445
  • Vista Pro: 438453
  • APDI: 8013106
  • Spectra Premium: CU13106
  • Partslink: TO3010323

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2009 Pontiac Vibe 1.8L L4 1798cc 110ci; Wagon; Automatic
2010 Pontiac Vibe 1.8L L4 1798cc 110ci; Wagon; Automatic
2009 Toyota Corolla Base; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2009 Toyota Corolla LE; 1.8L L4 1798cc 110ci; Sedan; Automatic / S; 1.8L L4 1798cc 110ci; Sedan; Automatic / XLE; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2010 Toyota Corolla Base; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2010 Toyota Corolla LE; 1.8L L4 1798cc 110ci; Sedan; Automatic / S; 1.8L L4 1798cc 110ci; Sedan; Automatic / XLE; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2011 Toyota Corolla Base; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2011 Toyota Corolla LE; 1.8L L4 1798cc 110ci; Sedan; Automatic / S; 1.8L L4 1798cc 110ci; Sedan; Automatic / XLE; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2012 Toyota Corolla L; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2012 Toyota Corolla LE; 1.8L L4 1798cc 110ci; Sedan; Automatic / S; 1.8L L4 1798cc 110ci; Sedan; Automatic / XLE; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2013 Toyota Corolla L; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2013 Toyota Corolla LE; 1.8L L4 1798cc 110ci; Sedan; Automatic / S; 1.8L L4 1798cc 110ci; Sedan; Automatic / XLE; 1.8L L4 1798cc 110ci; Sedan; Automatic NORTH AMERICA BUILT
2014 Toyota Corolla L; 1.8L L4 1798cc 110ci; Sedan; 4
2015 Toyota Corolla L; 1.8L L4 1798cc 110ci; Sedan; 4
2016 Toyota Corolla L; 1.8L L4 1798cc 110ci; Sedan; 4
2009 Toyota Matrix 1.8L L4 1798cc 110ci; Wagon; Automatic
2010 Toyota Matrix 1.8L L4 1798cc 110ci; Wagon; Automatic
2011 Toyota Matrix 1.8L L4 1798cc 110ci; Wagon; Automatic
2012 Toyota Matrix 1.8L L4 1798cc 110ci; Wagon; Automatic
2013 Toyota Matrix 1.8L L4 1798cc 110ci; Wagon; Automatic

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13106.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
