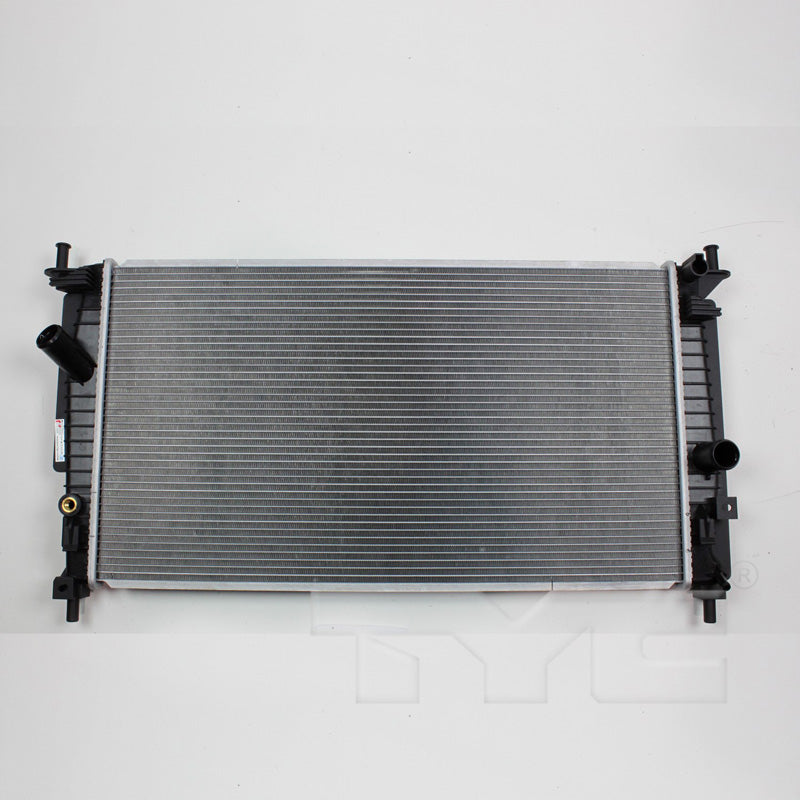

TYC 13100 Radiator Assembly for 2010-2013 Mazda 3
Brand: TYC
- Regular price
- $168.24 CAD
- Sale price
- $168.24 CAD
- Regular price
-
Shipping calculated at checkout.
SKU:13100
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...
Product Description
Performance Overview
OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.
Key Features
Specifications
- No. Of Rows: 1
- Transmission Oil Cooler Included: No
- Tube Width X Height: 16x2
- Bottom Header: 1.57x15.49
- Core Material: Aluminum
- Inlet Diameter (in): 1.34
- Top Header: 1.57x15.49
- Core Length (in): 26.42
- Tube Count (every 4"): 12
- Fin Wave Height (in): 0.25
- Fin Count (every 4"): 92
- Core Thickness (in): 0.63
- Total Fin Row Count: 44
- Outlet Diameter (in): 1.34
- Fin Wave Pitch: 2.2
- Inlet Connection Type: Hose Clamp
- Flow Configuration: Crossflow
- Outlet Connection Type: Hose Clamp
- Total Tube Count: 43
- Engine Oil Cooler Included: No
- Core Height (in): 14.3
Package Details
- Part Number: 13100
- 10-13 MZ MZ-3 2.0/2.5L L4 A/MT 1R PA RAD
- Package L x W x H: 19.29" x 5.71" x 34.25"
- Package Weight: 8.34 lbs.
Interchanges
- Performance Radiator: 1136
- DENSO: 221-3508
- CSF: 3496
- Vista Pro: 438450
- Silla Cooling: 7554
- APDI: 8013100
- Spectra Premium: CU13100
- Mazda: LF8M-15-20YD
- Partslink: MA3010228
Vehicle Fitment Table
| Year | Make | Model | Position | Fitment Precision | Note |
| 2010 | Mazda | 3 | i; 2.0L L4 1999cc 122ci; Sedan; 2.0L L4 1999cc 122ci, Primary / i; 2.0L L4 2000cc 122ci; Sedan; 2.0L L4 2000cc 122ci, Primary | ||
| 2010 | Mazda | 3 | Mazdaspeed; 2.3L L4 2260cc; Hatchback; 2.3L L4 2260cc, Primary / S; 2.5L L4 2488cc 152ci; Hatchback; 2.5L L4 2488cc 152ci, Primary / S; 2.5L L4 2488cc 152ci; Sedan; 2.5L L4 2488cc 152ci, Primary | ||
| 2011 | Mazda | 3 | i; 2.0L L4 1999cc 122ci; Sedan; 2.0L L4 1999cc 122ci, Primary / i; 2.0L L4 2000cc 122ci; Sedan; 2.0L L4 2000cc 122ci, Primary | ||
| 2011 | Mazda | 3 | Mazdaspeed; 2.3L L4 2260cc; Hatchback; 2.3L L4 2260cc, Primary / S; 2.5L L4 2488cc 152ci; Hatchback; 2.5L L4 2488cc 152ci, Primary / S; 2.5L L4 2488cc 152ci; Sedan; 2.5L L4 2488cc 152ci, Primary | ||
| 2012 | Mazda | 3 | i; 2.0L L4 1998cc 122ci; Hatchback; Manual, Primary / i; 2.0L L4 1998cc 122ci; Sedan; 5, Primary / i; 2.0L L4 1999cc 122ci; Sedan; 5, Primary / i; 2.0L L4 2000cc 122ci; Hatchback; Manual, Primary / i; 2.0L L4 2000cc 122ci; Sedan; 5, Primary | ||
| 2012 | Mazda | 3 | Mazdaspeed; 2.3L L4 2260cc; Hatchback; 2.3L L4 2260cc, Primary / S; 2.5L L4 2488cc 152ci; Hatchback; 2.5L L4 2488cc 152ci, Primary / S; 2.5L L4 2488cc 152ci; Sedan; 2.5L L4 2488cc 152ci, Primary | ||
| 2013 | Mazda | 3 | i; 2.0L L4 1998cc 122ci; Hatchback; Manual, Primary / i; 2.0L L4 1998cc 122ci; Sedan; 5, Primary / i; 2.0L L4 1999cc 122ci; Sedan; 5, Primary / i; 2.0L L4 2000cc 122ci; Hatchback; Manual, Primary / i; 2.0L L4 2000cc 122ci; Sedan; 5, Primary | ||
| 2013 | Mazda | 3 | Mazdaspeed; 2.3L L4 2260cc; Hatchback; 2.3L L4 2260cc, Primary / S; 2.5L L4 2488cc 152ci; Hatchback; 2.5L L4 2488cc 152ci, Primary / S; 2.5L L4 2488cc 152ci; Sedan; 2.5L L4 2488cc 152ci, Primary |
FAQ
Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.
What part number is this?
The listed part number is 13100.
Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.
Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
