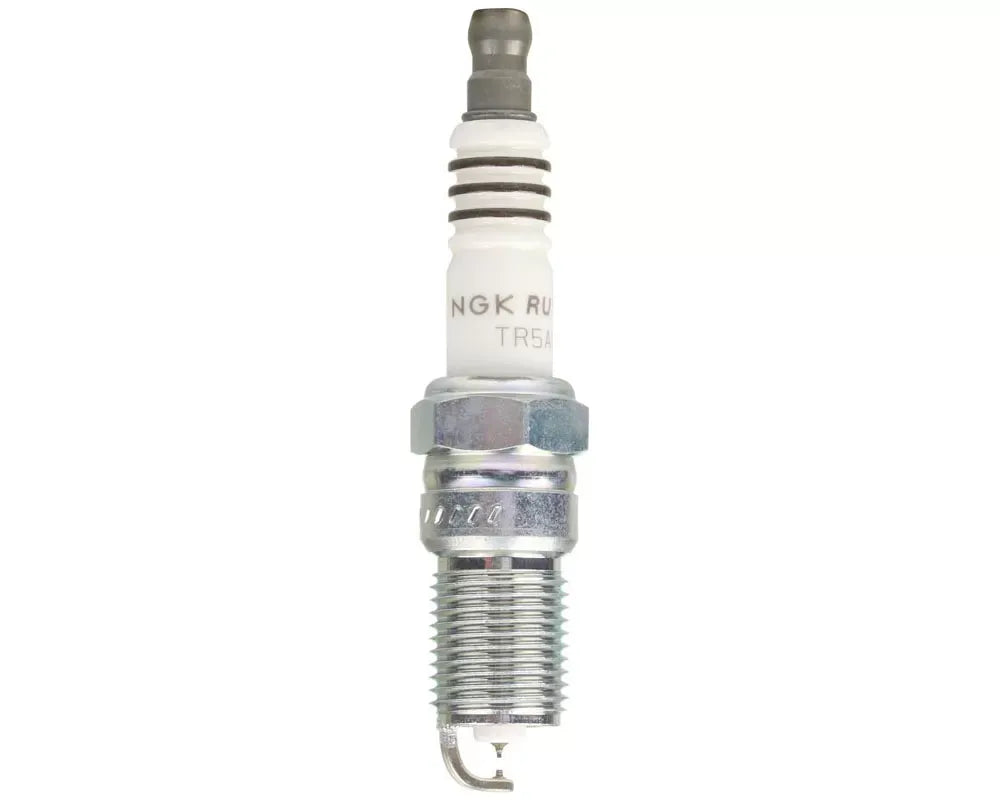

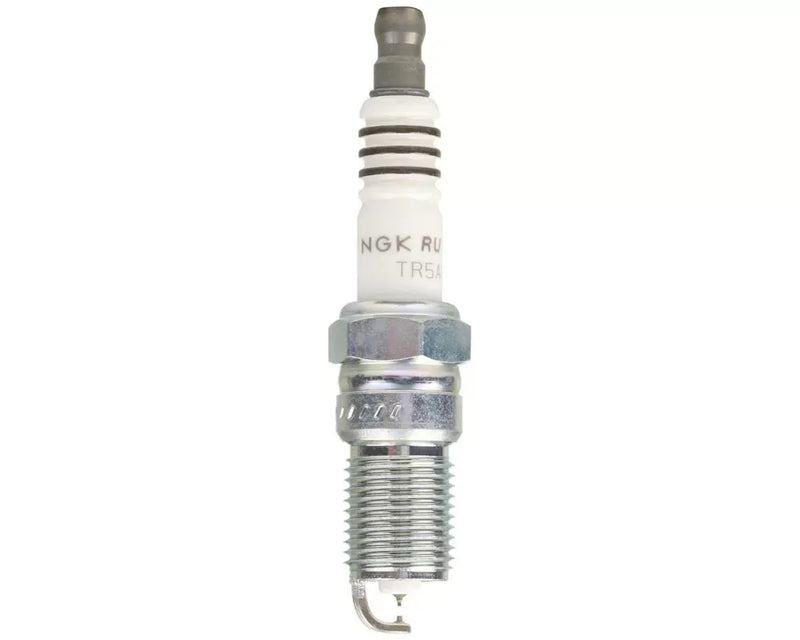

NGK 94567 Ruthenium HX Spark Plug Box of 4 for 1960-2020 Aston Martin DB7 Vantage
Brand: NGK
- Regular price
- $19.71 CAD
- Sale price
- $19.71 CAD
- Regular price
-
Shipping calculated at checkout.
SKU:94567
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...
Product Description
Performance Overview
NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability. NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for today's modern vehicles. NGK's patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy.
Specifications
- Stock Number: 94567
- Part Number: TR5AHX
- Resistance: 5000
- Ground Electrode Tip Design: Dual Fine Electrode - High Ignitability
- Ground Configuration: Standard
- Ground Electrode Core Material: Nickel
- Electrical Terminal Type: Non-Removable Nut
- Center Electrode Core Material: Copper
- Center Electrode Tip Material: Ruthenium
- Gap Size: .044
- Ground Electrode Quantity: 1
- Hex Size: 5/8
- Insulator Height: 52.50
- Manufacturer Heat Range: 5
- Seat Type: Tapered
- Reach: .708
- Thread Diameter: 14.00
Key Features
- High Ignitability Double Fine Electrode Design: Combines 0.6 millimeter ruthenium center with opposed fine wire platinum ground electrode
- Ruthenium Alloy Center Electrode: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures
- Platinum Pin Type Ground Electrode: Provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
- Solid Copper Core: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- Trivalent Metal Plating: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- Recommended Usage: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
Vehicle Fitment Table
| Year | Make | Model | Position | Fitment Precision | Note |
| 2002-2004 | Aston Martin | DB7 Vantage; DB7 Vantage Volante | |||
| 2003-2004 | Aston Martin | DB7 GT | |||
| 2003 | Aston Martin | DB7 GTA | |||
| 1997-1998 | Buick | Skylark Custom | |||
| 1997 | Buick | Skylark Gran Sport; Skylark Limited | |||
| 2004-2007 | Buick | Rainier CXL | |||
| 2004-2005 | Buick | Rainier CXL Plus | |||
| 2006-2011 | Buick | Lucerne CX; Lucerne CXL | |||
| 2006-2008 | Buick | Lucerne CXS | |||
| 2008-2009 | Buick | LaCrosse CX; LaCrosse CXL; LaCrosse Super | |||
| 2008 | Buick | LaCrosse CXS | |||
| 2008-2011 | Buick | Lucerne Super | |||
| 2010 | Buick | Lucerne CXL Special Edition | |||
| 1999-2000, 2002-2014 | Cadillac | Escalade Base | |||
| 2000-2005 | Cadillac | DeVille Base; DeVille DHS; DeVille DTS | |||
| 2000-2002 | Cadillac | Eldorado ESC; Eldorado ETC | |||
| 2000-2004 | Cadillac | Seville SLS; Seville STS | |||
| 2002-2013 | Cadillac | Escalade EXT Base | |||
| 2003-2014 | Cadillac | Escalade ESV Base | |||
| 2004-2007 | Cadillac | CTS Base | |||
| 2004-2005 | Cadillac | DeVille Protection Series | |||
| 2004-2009 | Cadillac | SRX Base | |||
| 2004-2006 | Cadillac | SRX Confort; SRX Elegance; SRX Lujo | |||
| 2004-2008 | Cadillac | XLR Base | |||
| 2005-2010 | Cadillac | STS Base | |||
| 2005 | Cadillac | STS Elegance | |||
| 2006-2011 | Cadillac | DTS Base | |||
| 2006, 2009 | Cadillac | STS V | |||
| 2007-2011 | Cadillac | DTS Luxury | |||
| 2008-2011 | Cadillac | DTS Platinum | |||
| 2008-2014 | Cadillac | Escalade ESV Platinum; Escalade Platinum | |||
| 2008-2009 | Cadillac | STS Platinum; XLR Platinum | |||
| 2009-2013 | Cadillac | Escalade Hybrid | |||
| 2010-2011 | Cadillac | DTS Livery; DTS Premium | |||
| 2010 | Cadillac | Escalade ESV Lujo | |||
| 2010-2013 | Cadillac | Escalade Hybrid Platinum | |||
| 2011-2014 | Cadillac | Escalade ESV Luxury; Escalade ESV Premium; Escalade Luxury; Escalade Premium | |||
| 2011-2013 | Cadillac | Escalade EXT Luxury; Escalade EXT Premium | |||
| 2012 | Cadillac | Escalade ESV Special Edition; Escalade Special Edition | |||
| 1960-1962 | Chevrolet | C40 Base | |||
| 1996-1999, 2005 | Chevrolet | Blazer Base | |||
| 1996-1997 | Chevrolet | Blazer Deluxe | |||
| 1996-2004 | Chevrolet | Blazer LS; S10 LS | |||
| 1996-2002 | Chevrolet | Blazer LT | |||
| 1996-2003 | Chevrolet | S10 Base; S10 ZR2 | |||
| 1996-1998 | Chevrolet | S10 SS | |||
| 1997-2005 | Chevrolet | Astro Base; Astro LS; Astro LT | |||
| 1997-1999 | Chevrolet | C1500 Base; C2500 400 SS; Cavalier RS; P30 Base | |||
| 1997-1998 | Chevrolet | C1500 Cheyenne; C1500 Silverado; C1500 WT; C3500 Cheyenne; C3500 Silverado; Camaro Lujo; K1500 Cheyenne; K1500 Silverado; K1500 WT; K2500 Cheyenne; K2500 Silverado; K3500 Cheyenne; K3500 Silverado | |||
| 1997, 1999-2000 | Chevrolet | C3500 Base; K2500 Base; K3500 Base | |||
| 1997-2002 | Chevrolet | Camaro Base; Camaro Z28; Cavalier Base; Cavalier LS; Cavalier Z24 | |||
| 1997 | Chevrolet | Camaro RS; K1500 Base; Malibu LX | |||
| 1997-2004, 2006-2013 | Chevrolet | Corvette Base | |||
| 1997-2014 | Chevrolet | Express 1500 Base; Express 1500 LS; Tahoe LS; Tahoe LT | |||
| 1997-1999, 2001 | Chevrolet | Malibu Base; Malibu LS | |||
| 1997-2001, 2006-2009, 2011-2012 | Chevrolet | Tahoe Base | |||
| 1998-2002 | Chevrolet | Camaro Z28 SS | |||
| 1998 | Chevrolet | Corvette Indianapolis 500 Pace Car; K2500 WT | |||
| 1999-2001 | Chevrolet | Blazer Trailblazer | |||
| 1999 | Chevrolet | C1500 LS; K1500 LS | |||
| 1999-2000 | Chevrolet | C3500 LS; K2500 LS; K3500 LS | |||
| 1999-2003 | Chevrolet | S10 Xtreme | |||
| 1999-2012 | Chevrolet | Silverado 1500 Base | |||
| 1999-2013 | Chevrolet | Silverado 1500 LS; Silverado 1500 LT | |||
| 1999-2012, 2014, 2016-2017 | Chevrolet | Silverado 2500 Base | |||
| 1999-2004, 2013, 2015-2018 | Chevrolet | Silverado 2500 LS | |||
| 1999-2004 | Chevrolet | Silverado 2500 LT | |||
| 2000 | Chevrolet | C2500 Base; C2500 LS; Tahoe Limited | |||
| 2000-2005 | Chevrolet | Silverado 2500 400 SS | |||
| 2000-2002, 2007 | Chevrolet | Silverado 2500 Cheyenne | |||
| 2000-2002 | Chevrolet | Silverado 2500 Custom | |||
| 2000-2012 | Chevrolet | Suburban 1500 Base | |||
| 2000-2014 | Chevrolet | Suburban 1500 LS; Suburban 1500 LT | |||
| 2000-2001, 2009-2012 | Chevrolet | Suburban 2500 Base | |||
| 2000-2013 | Chevrolet | Suburban 2500 LS; Suburban 2500 LT | |||
| 2000, 2002-2006, 2008-2010 | Chevrolet | Tahoe Z71 | |||
| 2001-2005 | Chevrolet | Blazer Xtreme; Silverado 2500 HD Base | |||
| 2001-2002, 2006-2014 | Chevrolet | Express 1500 LT | |||
| 2001 | Chevrolet | Impala Base | |||
| 2001, 2006-2009 | Chevrolet | Impala LS | |||
| 2001-2003, 2005 | Chevrolet | Silverado 1500 HD LS | |||
| 2001-2003, 2005-2006 | Chevrolet | Silverado 1500 HD LT | |||
| 2001-2006 | Chevrolet | Silverado 2500 HD LS; Silverado 3500 LS; Silverado 3500 LT | |||
| 2001-2019 | Chevrolet | Silverado 2500 HD LT | |||
| 2001-2013, 2016-2018 | Chevrolet | Silverado 3500 Base | |||
| 2001-2004, 2006 | Chevrolet | Silverado 3500 HD | |||
| 2002-2006 | Chevrolet | Avalanche 1500 Base; Avalanche 1500 Z71; Suburban 1500 Z71 | |||
| 2002, 2005-2006 | Chevrolet | Avalanche 1500 LS; Avalanche 1500 LT | |||
| 2002-2003 | Chevrolet | Avalanche 1500 North Face; Avalanche 1500 On Road Edition | |||
| 2002-2004 | Chevrolet | Avalanche 2500 Base; S10 ZR5 | |||
| 2002 | Chevrolet | Blazer LTZ; Cavalier LS Sport; Silverado 1500 Custom | |||
| 2002-2013 | Chevrolet | Silverado 1500 WT | |||
| 2003 | Chevrolet | Avalanche 1500 WBH; Corvette 50th Anniversary Edition; Corvette 50th Anniversary Edition Pace Car; Trailblazer LTZ | |||
| 2003-2005 | Chevrolet | Blazer ZR2 | |||
| 2003-2006 | Chevrolet | Silverado 1500 SS; SSR Base; Trailblazer EXT Base; Trailblazer EXT LS; Trailblazer EXT LT | |||
| 2003-2019 | Chevrolet | Silverado 2500 HD WT | |||
| 2003-2008 | Chevrolet | Trailblazer Base | |||
| 2003-2004 | Chevrolet | Trailblazer EXT North Face; Trailblazer North Face | |||
| 2003-2007 | Chevrolet | Trailblazer LS | |||
| 2003-2009 | Chevrolet | Trailblazer LT | |||
| 2004-2006 | Chevrolet | Avalanche 1500 Z66; Trailblazer EXT B | |||
| 2004-2006, 2009-2013 | Chevrolet | Silverado 1500 Hybrid | |||
| 2004-2005 | Chevrolet | Silverado 1500 Z71 Off-Road | |||
| 2004 | Chevrolet | Silverado 2500 WT | |||
| 2004, 2006, 2015 | Chevrolet | Silverado 3500 WT | |||
| 2004-2007 | Chevrolet | Trailblazer A; Trailblazer B | |||
| 2005-2006 | Chevrolet | Avalanche 2500 LS; Avalanche 2500 LT | |||
| 2005 | Chevrolet | Silverado 1500 HD Base; Trailblazer Q; Trailblazer R | |||
| 2006-2009 | Chevrolet | Impala LT; Impala LTZ; Impala Police; Impala SS; Trailblazer SS | |||
| 2006-2007 | Chevrolet | Monte Carlo LS; Monte Carlo LT | |||
| 2006 | Chevrolet | Monte Carlo LTZ | |||
| 2006-2014 | Chevrolet | Suburban 1500 LTZ | |||
| 2007-2013 | Chevrolet | Avalanche Base; Silverado 1500 LTZ | |||
| 2007-2012 | Chevrolet | Avalanche LS; Avalanche LT; Avalanche LTZ | |||
| 2007 | Chevrolet | Silverado 1500 Classic Hybrid; Silverado 1500 Classic LS; Silverado 1500 Classic LT; Silverado 1500 Classic SS; Silverado 1500 Classic WT; Silverado 1500 HD Classic LT; Silverado 2500 HD Classic LS; Silverado 2500 HD Classic LT; Silverado 2500 HD Classic WT; Silverado 3500 Classic LS; Silverado 3500 Classic LT; Silverado 3500 Classic WT; Suburban 2500 LTZ | |||
| 2007-2019 | Chevrolet | Silverado 2500 HD LTZ; Silverado 3500 HD LT; Silverado 3500 HD LTZ; Silverado 3500 HD WT | |||
| 2007-2014 | Chevrolet | Tahoe LTZ; Tahoe PPV | |||
| 2008 | Chevrolet | Corvette 427 Limited Edition Z06; Impala 50th Anniversary Edition | |||
| 2008-2013 | Chevrolet | Tahoe Hybrid | |||
| 2009-2012 | Chevrolet | Colorado Base; Colorado LT; Colorado WT | |||
| 2010-2015 | Chevrolet | Camaro LS; Camaro LT; Camaro SS | |||
| 2010-2013 | Chevrolet | Silverado 1500 XFE | |||
| 2010 | Chevrolet | Suburban 1500 75 Aniversario Diamond Edition | |||
| 2011-2012 | Chevrolet | Camaro 1LT; Camaro 1SS; Camaro 2SS | |||
| 2011-2017 | Chevrolet | Caprice PPV | |||
| 2011 | Chevrolet | Corvette Z06 Carbon | |||
| 2012-2014 | Chevrolet | Tahoe SSV | |||
| 2013 | Chevrolet | Avalanche Black Diamond LS; Avalanche Black Diamond LT; Avalanche Black Diamond LTZ; Corvette 427 | |||
| 2014-2017 | Chevrolet | SS Base | |||
| 2014, 2016-2018 | Chevrolet | Suburban LT | |||
| 2014 | Chevrolet | Tahoe Police | |||
| 2015-2020 | Chevrolet | Express 2500 Base; Express 2500 LS; Express 2500 LT | |||
| 2015-2019 | Chevrolet | Silverado 2500 HD High Country; Silverado 3500 HD High Country | |||
| 2016-2018 | Chevrolet | Suburban 3500 HD LS; Suburban 3500 HD LT; Suburban HD; Suburban LS | |||
| 2016 | Chevrolet | Suburban LTZ | |||
| 2017-2018 | Chevrolet | Suburban Premier | |||
| 1997-2002, 2007-2008 | Ford | E-150 Econoline Base | |||
| 1997-2002 | Ford | E-150 Econoline Club Wagon Chateau; E-150 Econoline Club Wagon XLT; E-250 Econoline Base; E-350 Econoline Club Wagon Chateau; E-350 Econoline Club Wagon XLT | |||
| 1997-2000 | Ford | E-150 Econoline Club Wagon Custom; E-150 Econoline XL; E-250 Econoline XL; E-350 Econoline Club Wagon Custom; F-150 Base | |||
| 1997-2000, 2007-2008 | Ford | E-350 Econoline Base | |||
| 1997-1998 | Ford | E-350 Econoline Club Wagon XL HD; E-350 Econoline Club Wagon XLT HD; E-350 Econoline XL | |||
| 1997-2004 | Ford | Expedition Eddie Bauer; Expedition XLT; F-250 XL; F-250 XLT; Taurus LX | |||
| 1997 | Ford | Expedition XLT Plus; F-250 HD XL; F-250 HD XLT; Taurus G; Taurus GL | |||
| 1997-2010 | Ford | F-150 Lariat; F-150 XL; F-150 XLT | |||
| 1997-1999 | Ford | F-250 Base; F-250 Lariat; F-250 XLT VIP | |||
| 1998-2008, 2010-2011 | Ford | Crown Victoria Base | |||
| 1998-2011 | Ford | Crown Victoria LX; Crown Victoria Police Interceptor | |||
| 1998-2005 | Ford | Crown Victoria S; Taurus SE | |||
| 1998-1999 | Ford | F-150 Austera | |||
| 1998, 2000, 2003 | Ford | Taurus SE Comfort | |||
| 1999-2016 | Ford | E-350 Super Duty Base | |||
| 1999-2000, 2006-2014 | Ford | E-350 Super Duty XL | |||
| 1999-2003 | Ford | F-150 Lightning; Mustang Equipado | |||
| 1999-2004 | Ford | F-250 Super Duty Lariat; F-250 Super Duty XL; F-250 Super Duty XLT; F-350 Super Duty Lariat; F-350 Super Duty XL; F-350 Super Duty XLT; F-350 XL; F-350 XLT; Mustang Base | |||
| 2000-2005 | Ford | Excursion Limited; Excursion XLT; Taurus SEL | |||
| 2000-2003, 2006-2008, 2010 | Ford | F-150 Harley-Davidson Edition | |||
| 2000-2004 | Ford | Taurus SES | |||
| 2001-2002 | Ford | E-150 Econoline Club Wagon XL; E-350 Econoline Club Wagon XL | |||
| 2001-2012 | Ford | Escape XLS; Escape XLT | |||
| 2001-2003, 2005-2010 | Ford | F-150 King Ranch | |||
| 2002-2009 | Ford | Crown Victoria LWB | |||
| 2002-2014 | Ford | E-150 XL | |||
| 2002-2005 | Ford | E-350 Club Wagon XL; Explorer Eddie Bauer; Explorer Limited; Explorer XLS; Explorer XLT | |||
| 2002-2003 | Ford | Explorer Postal; Explorer Sport Base | |||
| 2002 | Ford | Explorer Sport Trac XL | |||
| 2003-2014 | Ford | E-150 Base; E-250 Base | |||
| 2003-2005 | Ford | E-150 Club Wagon Chateau; E-150 Club Wagon XL; E-150 Club Wagon XLT; E-350 Club Wagon Chateau; E-350 Club Wagon XLT; Excursion Eddie Bauer; Explorer Sport Trac XLS; Explorer Sport Trac XLT | |||
| 2003-2012 | Ford | Escape Limited | |||
| 2003 | Ford | Explorer Sport XLS; Explorer Sport XLT | |||
| 2003-2004 | Ford | F-350 Super Duty King Ranch; Mustang Mach 1 | |||
| 2004-2006 | Ford | Crown Victoria LX Sport | |||
| 2004-2005 | Ford | Excursion XLS; Explorer XLS Sport; Explorer XLT Sport | |||
| 2004 | Ford | Expedition NBX; Expedition XLS; Expedition XLT Sport; Explorer NBX; F-150 Heritage SVT Lightning; F-150 Heritage XL; F-150 Heritage XLT; F-250 Flotillera; F-250 Super Duty Harley-Davidson Edition; F-250 Super Duty King Ranch; F-350 Super Duty Harley-Davidson Edition | |||
| 2004-2009 | Ford | F-150 Flotillera | |||
| 2004-2010 | Ford | F-150 FX4; F-150 STX | |||
| 2005 | Ford | Crown Victoria Special Edition; Escape XLT No Boundaries; Escape XLT Sport; Explorer Sport Trac Adrenalin | |||
| 2005-2012 | Ford | Escape Hybrid | |||
| 2005-2007 | Ford | Escape XLT Deportivo; Five Hundred Limited; Five Hundred SEL; Freestyle Limited; Freestyle SEL | |||
| 2005-2006 | Ford | Five Hundred SE; Five Hundred SEL Premium; Freestyle SE | |||
| 2006-2009 | Ford | Crown Victoria Fleet; Fusion SEL Plus | |||
| 2006-2007 | Ford | E-150 Chateau | |||
| 2006-2014 | Ford | E-150 XLT; E-350 Super Duty XLT | |||
| 2006 | Ford | E-350 Super Duty Chateau | |||
| 2006-2012 | Ford | Fusion S; Fusion SE; Fusion SEL | |||
| 2007-2008, 2010 | Ford | F-150 FX2 | |||
| 2008 | Ford | F-150 Limited; F-150 THE 60TH ANNIVERSARY EDITION; F-150 XTR | |||
| 2009-2012 | Ford | Escape Limited Hybrid | |||
| 2009-2010 | Ford | F-150 Platinum | |||
| 2010-2012 | Ford | Fusion Hybrid; Fusion Sport | |||
| 2011-2012 | Ford | Escape Limited Plus | |||
| 2011 | Ford | Focus Ambiente; Focus RS; Focus S; Focus SE; Focus SEL; Focus SES; Focus Sport |
FAQ
Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.
What part number is this?
The listed part number is 94567.
Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the fitment table.
Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the fitment table before ordering.
Common Searches
- Ruthenium HX Spark Plug Box of 4 for Aston Martin DB7 Vantage
- 94567 fitment
- NGK Ruthenium HX Spark Plug Box of 4
- 2002 Aston Martin DB7 Vantage Ruthenium HX Spark Plug Box of 4
You May Also Like
Shop All
