Specifications

• Bearing Cap Axis 1 Diameter: 0.94
• Bearing Cap Axis 2 Diameter: 23.83
• Bearing Cap Type: Plain
• Greasable: Yes
• Height (Inch): 1.30
• Length (Inch): 3.50
• Length Axis 1: 2.41
• Length Axis 2: 2.41
• Lock Ring Location: External
• Material: Steel With Black Oxide Coating
• Mounting Hardware Included: Yes
• Width (Inch): 3.50
• Lube Fitting Location: Grease Fitting in Cross

Features

• Special Chrome-Molybdenum Alloy Steel for superior corrosion resistance
• Exact fit snap ring included
• Heavy Duty needle bearings for greater load capacity
• Multi-stage testing prior to assembly for maximum quality control
• Strap Kits and U-Bolt Kits for easy U-Joint installation

Product Details

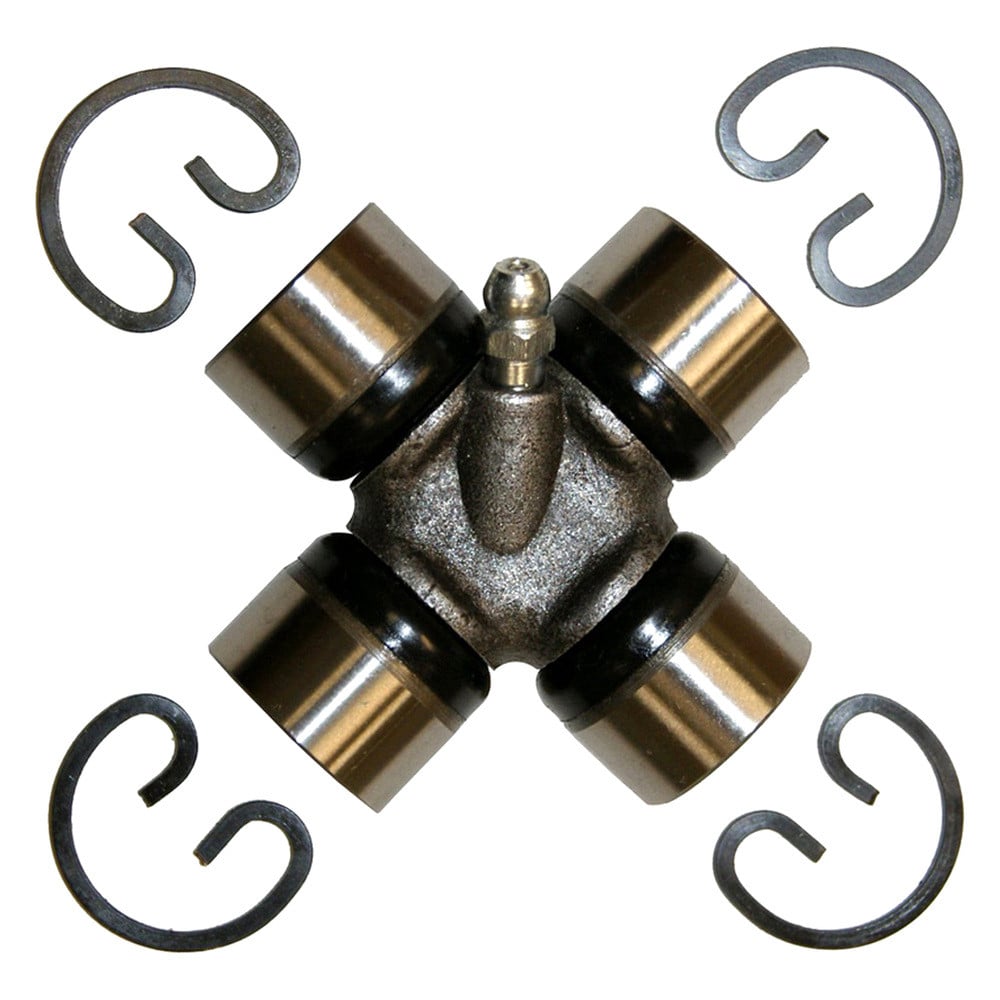

Grade Standard U-Joint (220-0500) by GMB®. Location: Rear Shaft All Joints. GMB is one of the world’s largest Universal Joint manufacturers with over 70 years of experience. With a full line of products, the GMB Universal Joint program offers extensive OEM application coverage for all major Asian, European, and Domestic nameplates. Drive shaft incorporated with universal joint is widely in use not only in automotive industry but also all other industrial scenes. Purpose: high torque transmission in limited space. GMB is specialized in universal joint, key element of module like drive shaft or propeller shaft. GMB is able to meet different requirements and shaft sizes of OEM customers.

GMB also covers global aftermarket with wider range line-up and proudly extends they brand name. This service is realized by company thorough in-house production. GMB maintains production and engineering knowledge and experience to produce universal joints of the highest quality viable under all conditions at economical cost. Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 220-0500.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the fitment table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the fitment table before ordering.
