Specifications

• Bearing Cap Diameter: 1.063"
• Lock Ring Type: External
• Lock Ring Size: 4.185"
• Lubrication Method: Grease Fitting in Cross

Features

• Oversized Elliptical Shaped Bearings
• Designed to Meet or Exceed O.E. Specifications
• Three-point- contact Triple Lip Seal to have the best Sealing Performance
• Fluorine-containing rubber seal to prevent leakage perfectly
• Stronger Fracture Load than the Competitors
• Cold Forged Spider and Case
• Premium Material for excessive Load application

Product Details

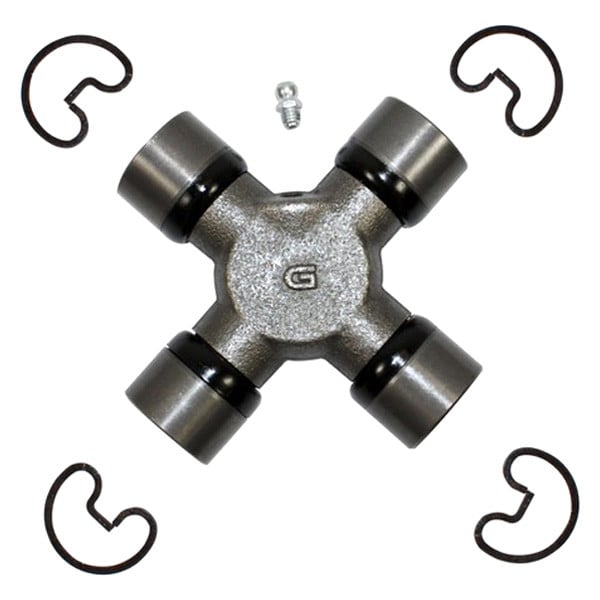

Grade Coated™ U-Joint (219-0160) by GMB®. Driveshaft incorporated with universal joint is widely in use not only in automotive industry but also all other industrial scenes. Purpose: high torque transmission in limited space. GMB is specialized in universal joint, key element of module like drive shaft or propeller shaft. GMB is able to meet different requirements and shaft sizes of OEM customers.

GMB also covers global aftermarket with wider range line-up and proudly extends their brand name. This service is realized by their thorough in-house production. GMB maintains production and engineering knowledge and experience to produce universal joints of the highest quality viable under all conditions at economical cost.

Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 219-0160.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the fitment table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the fitment table before ordering.
