Specifications

Features

• Cloyes parts are CAD designed and manufactured using premium materials
• Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
• Cloyes recommends the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced as these components play a vital role in system stability and accurate timing
• Refer to our online catalog for detailed application-specific information
• Keep your engine’s valvetrain in perfect time with Cloyes, the world leader in timing drive systems

Product Details

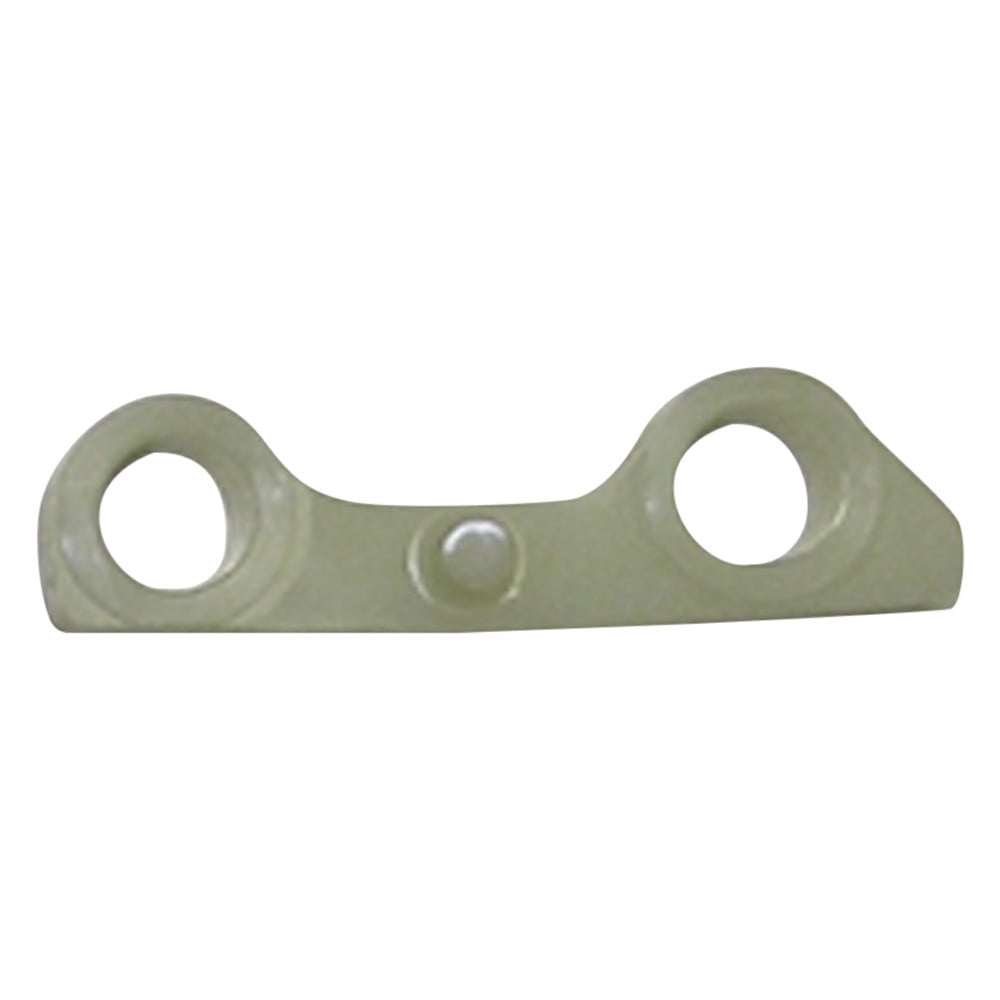

Timing Chain Guide with Shoe (9-5517) by Cloyes®. A timing chain guide serves as a track or guide, for the timing chain, connecting the crankshaft and camshaft. Designed to meet or exceed OEM performance requirements, Cloyes Timing Guides, which are available in kits or as a stand-alone product, utilize the latest in design and material technology, ensuring quiet and maintenance-free experience.

The crankshaft drives the valvetrain via timing gears. Gear timing must be precise to ensure the valves open and close at the right time, for optimum engine performance. However, worn gears can cause timing to go astray and cause the engine to not start or run poorly. When it’s time to replace worn timing system components, depend on Cloyes for the OE quality timing drive components that will restore engine performance and reliability. Cloyes has been manufacturing timing components for over 80 years. It’s their only product line, which enables them to concentrate on maintaining the highest quality standards. In fact, Cloyes has achieved ISO/TS 16949 quality certification, the highest level offered for the design/development and production of automotive related products. Cloyes is the only aftermarket timing component manufacturer that is also a Tier 1 supplier to OE vehicle manufacturers. As an OE supplier, Cloyes knows how to make parts that install and work perfectly, so you can be assured that whatever timing components you need for your vehicle, with Cloyes you’ll get OE fit and function. Cloyes parts are CAD designed and manufactured using advanced materials. Each part is extensively tested for function and durability to ensure optimal performance. Cloyes is so confident in the quality and performance of its timing components that it warrants all except high-performance products to be free from defects in materials and workmanship under normal operating conditions for as long as the original purchaser owns the vehicle in which the product is originally installed.

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 9-5517.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the fitment table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the fitment table before ordering.
