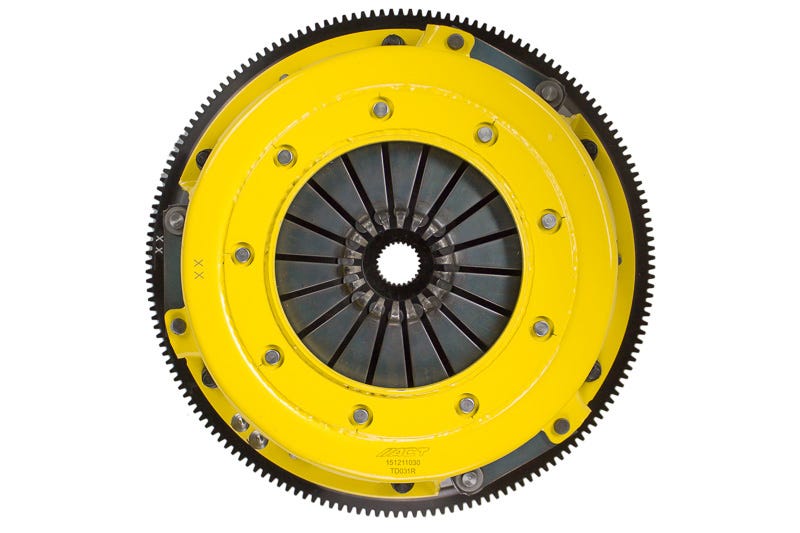

ACT Twin Disc Maxx Xtreme Clutch Kits offer a clamp load increase of 70% to 150% with a stiff to very stiff pedal feel. These products offer twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. The kits come with a CNC-machined and dynamically balanced flywheel for easy installation. They come packaged with a MaXX Xtreme pressure plate, two race discs, a floater and flywheel.

Important Note:

SFI certified 1.2. Torque capacity: 1,516 ft.-lbs. Recommended for race use only.

Key Features:

• Spline Size (Inches): 1-1/8
• Disc Type: Race Disc
• Spline Count: 26
• Product Weight (lbs.): 45.6
• Flywheel Tooth Count: 168
• Torque Capacity (ft./lbs.): 1515
• Heavy to very heavy pedal effort, aggressive engagement, mild to moderate gear rattle
• Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design
• Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended for race use only
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

T3R-G05 race, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
Since 1994, Advanced Clutch Technology has specialized in performance clutches and flywheels. All products are made from the highest quality materials and then necessarily tested to ensure they perform to the customers' expectations.

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the compatibility table above before purchase.

What part number is this?
The listed part number is T3R-G05.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the fitment table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the fitment table before ordering.
