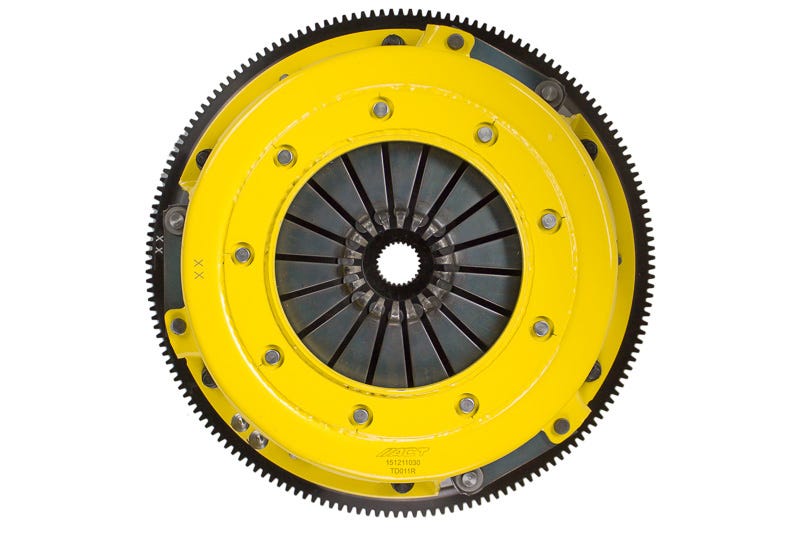

ACT Heavy-Duty Twin Disc Clutch Kits are made with high quality, ceramic friction materials for maximum strength. They offer twice the number of disc surfaces for better wear, heat capacity and superior durability. These products use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. They come packaged with a pressure plate, two discs, a floater, flywheel and alignment tool.

Important Note:

SFI certified 1.2. Torque capacity: 1,100 ft.-lbs. Recommended for race use only.

Key Features:

• Includes Streetlite flywheel
• Spline Size (Inches): 1-1/8
• Disc Type: Race Disc
• Spline Count: 26
• Product Weight (lbs.): 45.9
• Flywheel Tooth Count: 168
• Torque Capacity (ft./lbs.): 1120
• Light pedal effort, quicker shifts, aggressive engagement, mild to moderate gear rattle
• Doubles the number of disc surfaces for better wear, heat capacity and longer life, extended by ACT's exclusive diaphragm design
• Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended for race use only
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

T1R-G05 twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
Since 1994, Advanced Clutch Technology has specialized in performance clutches and flywheels. All products are made from the highest quality materials and then necessarily tested to ensure they perform to the customers' expectations.

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the compatibility table above before purchase.

What part number is this?
The listed part number is T1R-G05.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the fitment table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the fitment table before ordering.
