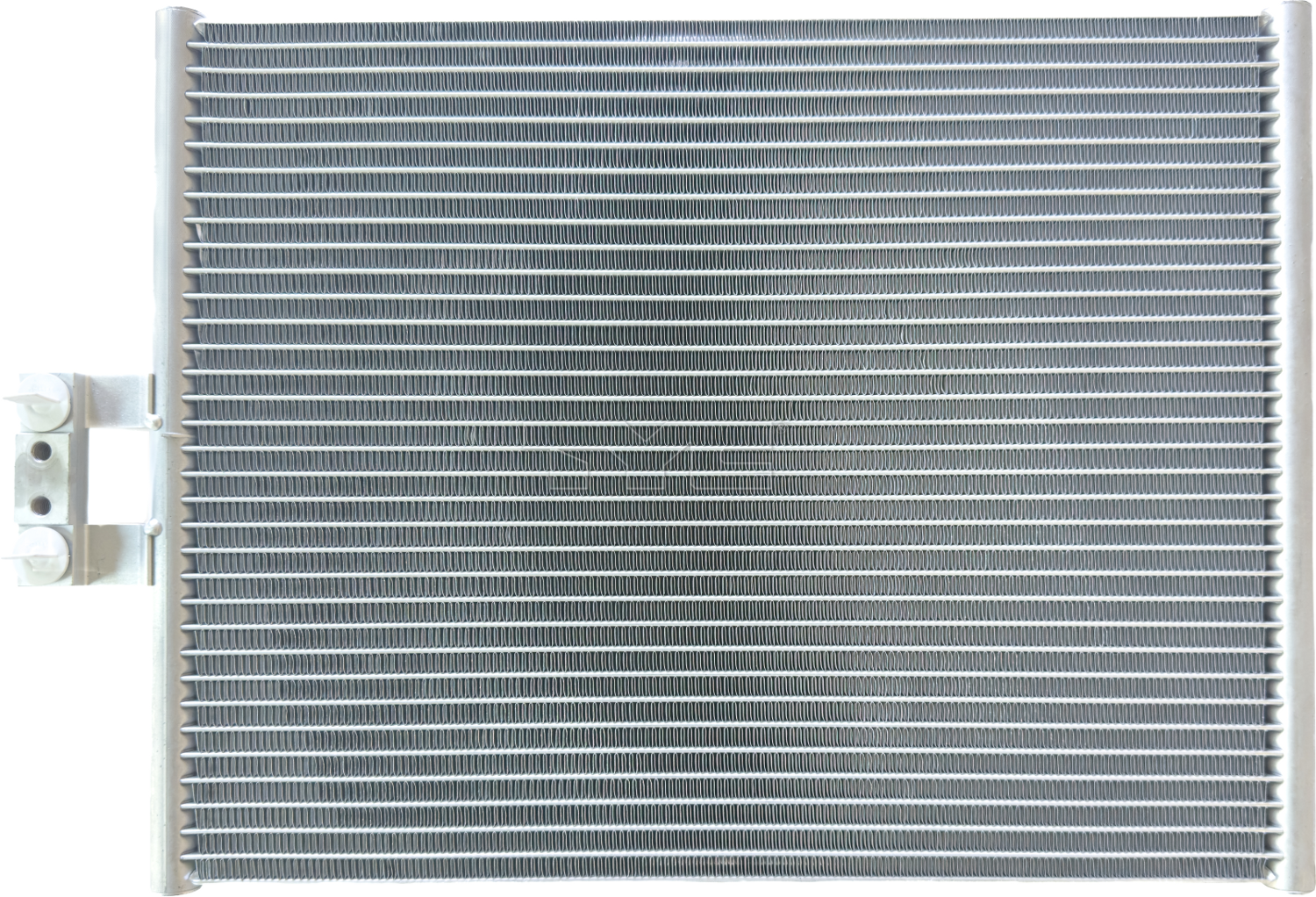

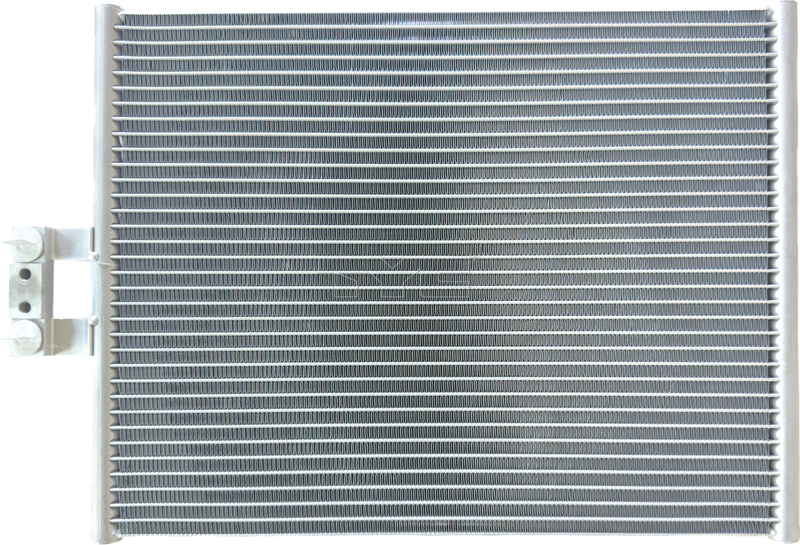

TYC 30325 A/C Condenser for 2020-2025 Chevrolet Corvette

TYC 30325 A/C Condenser for 2020-2025 Chevrolet Corvette
    TYC 30325 A/C Condenser for 2020-2025 Chevrolet Corvette
TYC 30325 A/C Condenser for 2020-2025 Chevrolet Corvette
Brand: TYC
$182.38 CAD
$182.38 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

30325
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient cooling surface area for best performance. OE-comparable mounting provisions ensure drop-in precise fitment.

Key Features

Specifications

  • Configuration: Parallel Flow Condenser(PFC)
  • Core Height (in): 13.46
  • Core Length (in): 18.11
  • Core Thickness (in): .63
  • Inlet Connection Type: Block Fitting
  • Inlet Diameter: 11.8mm
  • Outlet Connection Type: Block Fitting
  • Outlet Diamter: 11.8mm

Package Details

  • Part Number: 30325
  • 20-25 CV CRVET V8 5.5L L, COND (PFC)
  • Package L x W x H: 4.17" x 20.28" x 25.67"
  • Package Weight: 3.96 lbs.

Interchanges

  • Chevrolet: 85601833
  • Partslink: GM3030344

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2020 Chevrolet Corvette Stingray; 6.2L V8 6162cc 376ci; Convertible; 6.2L V8 6162cc 376ci, Left / Stingray; 6.2L V8 6162cc 376ci; Coupe; 6.2L V8 6162cc 376ci, Left
2021 Chevrolet Corvette Stingray; 6.2L V8 6162cc 376ci; Convertible; 6.2L V8 6162cc 376ci, Left / Stingray; 6.2L V8 6162cc 376ci; Coupe; 6.2L V8 6162cc 376ci, Left
2022 Chevrolet Corvette Stingray; 6.2L V8 6162cc 376ci; Convertible; 6.2L V8 6162cc 376ci, Left / Stingray; 6.2L V8 6162cc 376ci; Coupe; 6.2L V8 6162cc 376ci, Left
2023 Chevrolet Corvette Stingray; 6.2L V8 6162cc 376ci; Convertible; 6.2L V8 6162cc 376ci, Left / Stingray; 6.2L V8 6162cc 376ci; Coupe; 6.2L V8 6162cc 376ci, Left
2023 Chevrolet Corvette Z06; 5.5L V8 5462cc 333ci; Convertible; 5.5L V8 5462cc 333ci, Left / Z06; 5.5L V8 5462cc 333ci; Coupe; 5.5L V8 5462cc 333ci, Left
2024 Chevrolet Corvette E-Ray; 6.2L V8 6162cc 376ci; Coupe; 6.2L V8 6162cc 376ci, Left
2024 Chevrolet Corvette Stingray; 6.2L V8 6162cc 376ci; Convertible; 6.2L V8 6162cc 376ci, Left / Stingray; 6.2L V8 6162cc 376ci; Coupe; 6.2L V8 6162cc 376ci, Left
2024 Chevrolet Corvette Z06; 5.5L V8 5462cc 333ci; Convertible; 5.5L V8 5462cc 333ci, Left / Z06; 5.5L V8 5462cc 333ci; Coupe; 5.5L V8 5462cc 333ci, Left
2025 Chevrolet Corvette E-Ray; 6.2L V8 6162cc 376ci; Coupe; 6.2L V8 6162cc 376ci, Left
2025 Chevrolet Corvette Stingray; 6.2L V8 6162cc 376ci; Convertible; 6.2L V8 6162cc 376ci, Left / Stingray; 6.2L V8 6162cc 376ci; Coupe; 6.2L V8 6162cc 376ci, Left
2025 Chevrolet Corvette Z06; 5.5L V8 5462cc 333ci; Convertible; 5.5L V8 5462cc 333ci, Left / Z06; 5.5L V8 5462cc 333ci; Coupe; 5.5L V8 5462cc 333ci, Left

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 30325.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
