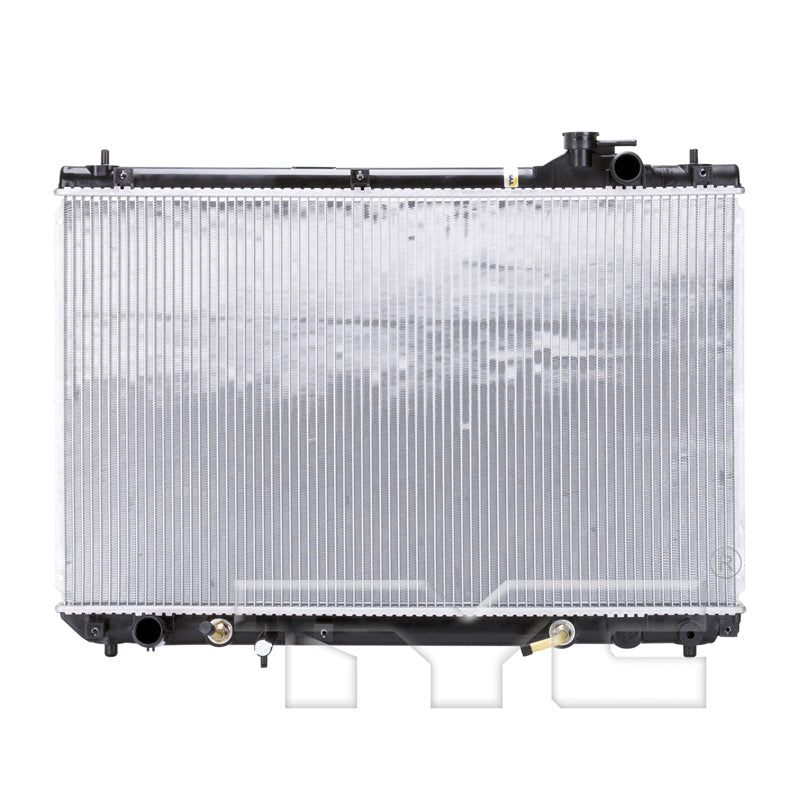

TYC 2848 Radiator Assembly for 2004-2007 Toyota Highlander

TYC 2848 Radiator Assembly for 2004-2007 Toyota Highlander
    TYC 2848 Radiator Assembly for 2004-2007 Toyota Highlander
TYC 2848 Radiator Assembly for 2004-2007 Toyota Highlander
Brand: TYC
$320.68 CAD
$320.68 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2848
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Toc Inlet Type: Tube fitting
  • Toc Outlet Type: Tube fitting
  • Outlet Diameter (in): 1.38
  • Core Material: Aluminum
  • Transmission Oil Cooler Included: Yes
  • Tube Width X Height: 26x2
  • Core Length (in): 17.72
  • TOC Outlet Diameter (IN): 0.39
  • Toc Distance (in): 14.76
  • Inlet Diameter (in): 1.38
  • Outlet Connection Type: Hose Clamp
  • Fin Count (every 4"): 73
  • Inlet Connection Type: Hose Clamp
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Fin Wave Height (in): 0.31
  • No. Of Rows: 1
  • TOC Inlet Diameter (IN): 0.39
  • Top Header: 2.04x29.9
  • Bottom Header: 2.04x29.9
  • Flow Configuration: Downflow
  • Core Thickness (in): 1.02
  • Core Height (in): 29.06
  • Total Tube Count: 73
  • Accessories Included: 1 x TOC tubular adapters (M14 x1 x diam 10 x 90 degrees)
  • Engine Oil Cooler Included: No
  • Tube Count (every 4"): 10
  • Fin Wave Pitch: 2.8
  • Total Fin Row Count: 74

Package Details

  • Part Number: 2848
  • 04-07 TY HLANDR 3.3L V6 AT 1R PA (w/ TOW) RAD
  • Package L x W x H: 24.61" x 6.10" x 31.30"
  • Package Weight: 13.13 lbs.

Interchanges

  • Toyota: 16410-AZ027
  • DENSO: 221-0511
  • Vista Pro: 432448
  • APDI: 8012377
  • Visteon: 9982
  • Spectra Premium: CU2377
  • Partslink: TO3010290

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2004 Toyota Highlander Base; 3.3L V6 3300cc; Sport Utility; 3.3L V6 3300cc, Primary / Limited; 3.3L V6 3300cc; Sport Utility; 3.3L V6 3300cc, Primary w/ Towing Pkg
2005 Toyota Highlander Base; 3.3L V6 3300cc 202ci; Sport Utility; 3.3L V6 3300cc 202ci, Primary / Limited; 3.3L V6 3300cc 202ci; Sport Utility; 3.3L V6 3300cc 202ci, Primary w/ Towing Pkg
2006 Toyota Highlander Base; 3.3L V6 3300cc 202ci; Sport Utility; 3.3L V6 3300cc 202ci, Primary / Limited; 3.3L V6 3300cc 202ci; Sport Utility; 3.3L V6 3300cc 202ci, Primary w/ Towing Pkg
2006 Toyota Highlander Sport; 3.3L V6 3300cc 202ci; Sport Utility; 3.3L V6 3300cc 202ci, Primary w/ Towing Pkg
2007 Toyota Highlander Base; 3.3L V6 3300cc 202ci; Sport Utility; 3.3L V6 3300cc 202ci, Primary / Limited; 3.3L V6 3300cc 202ci; Sport Utility; 3.3L V6 3300cc 202ci, Primary w/ Towing Pkg
2007 Toyota Highlander Sport; 3.3L V6 3300cc 202ci; Sport Utility; 3.3L V6 3300cc 202ci, Primary w/ Towing Pkg

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2848.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
