Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Bottom Header: 1.97x19.45
• Tube Count (every 4"): 10
• TOC Inlet Diameter (IN): 0.31
• Outlet Connection Type: Hose Clamp
• Core Material: Aluminum
• No. Of Rows: 1
• Inlet Connection Type: Hose Clamp
• Total Tube Count: 47
• Core Height (in): 18.82
• Toc Distance (in): 14.80
• Toc Inlet Type: Tube fitting
• Fin Wave Pitch: 3
• Engine Oil Cooler Included: No
• Total Fin Row Count: 48
• Fin Wave Height (in): 0.31
• Core Length (in): 25
• Fin Count (every 4"): 68
• Top Header: 1.97x19.45
• Core Thickness (in): 0.87
• Transmission Oil Cooler Type: Concentric Oil Cooler
• Toc Outlet Type: Tube fitting
• Tube Width X Height: 22x2
• Inlet Diameter (in): 1.38
• Transmission Oil Cooler Included: Yes
• Outlet Diameter (in): 1.38
• TOC Outlet Diameter (IN): 0.31
• Flow Configuration: Crossflow

Package Details

• Part Number: 2832

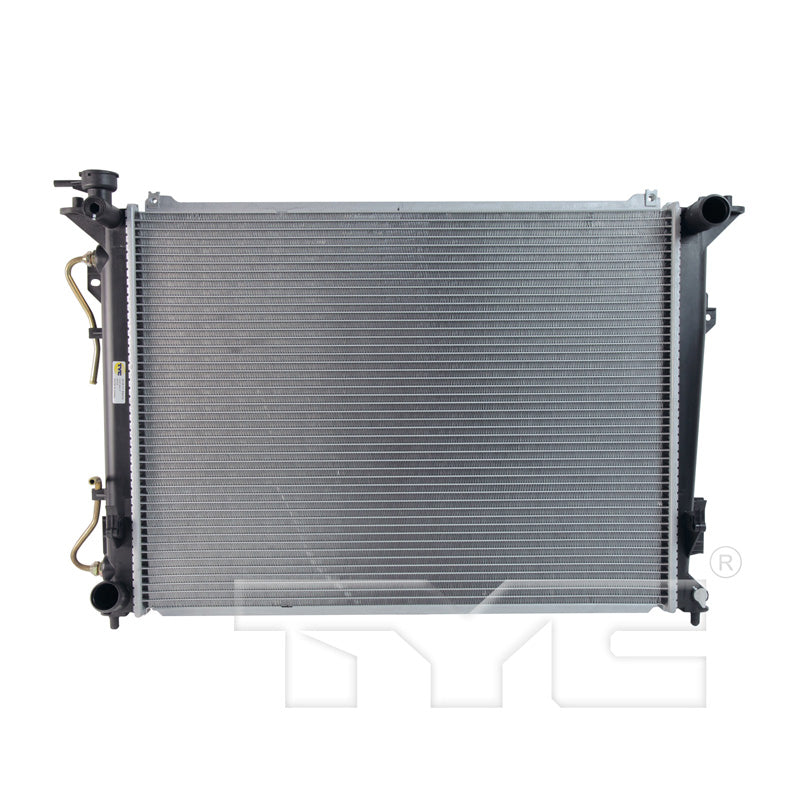

• 06-08 HY SNATA 3.3L V6 AT 1R PA RAD
• Package L x W x H: 23.03" x 6.10" x 33.46"
• Package Weight: 11.30 lbs.

Interchanges

• Kia: 25310 3L290
• Hyundai: 25310-3L290
• APDI: 8012831
• Spectra Premium: CU2831
• Partslink: HY3010156

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2832.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
