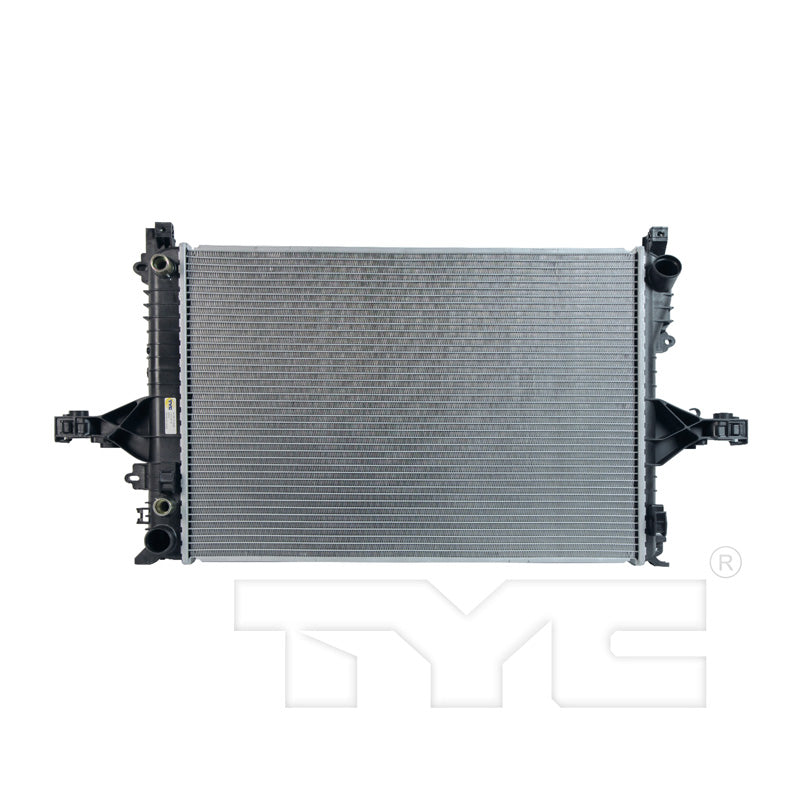

TYC 2805 Radiator Assembly for 1999-2009 Volvo S60

TYC 2805 Radiator Assembly for 1999-2009 Volvo S60
    TYC 2805 Radiator Assembly for 1999-2009 Volvo S60
TYC 2805 Radiator Assembly for 1999-2009 Volvo S60
Brand: TYC
$375.97 CAD
$375.97 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2805
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • No. Of Rows: 1
  • Bottom Header: 2.32x17.57
  • Toc Distance (in): 12.99
  • Fin Wave Height (in): 0.31
  • Fin Count (every 4"): 68
  • Tube Width X Height: 40x2
  • Inlet Diameter (in): 1.48
  • Top Header: 2.32x17.57
  • Fin Wave Pitch: 3
  • Total Fin Row Count: 43
  • TOC Inlet Diameter (IN): 0.73
  • Engine Oil Cooler Included: No
  • Core Height (in): 16.85
  • Transmission Oil Cooler Included: Yes
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Core Thickness (in): 1.57
  • TOC Outlet Diameter (IN): 0.73
  • Core Material: Aluminum
  • Toc Outlet Type: Tube fitting
  • Toc Inlet Type: Tube fitting
  • Total Tube Count: 42
  • Inlet Connection Type: Hose Clamp
  • Outlet Connection Type: Hose Clamp
  • Tube Count (every 4"): 10
  • Outlet Diameter (in): 1.48
  • Core Length (in): 24.41
  • Flow Configuration: Crossflow

Package Details

  • Part Number: 2805
  • 01-08 VL S-60 2.4/2.5L L5 1R PA (w/ TOC) RAD
  • Package L x W x H: 20.28" x 4.92" x 38.58"
  • Package Weight: 16.07 lbs.

Interchanges

  • Volvo: 31319056
  • Vista Pro: 432550
  • Silla Cooling: 7850
  • APDI: 8012805
  • Spectra Premium: CU2805
  • Partslink: VO3010102

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2001 Volvo S60 2.4T; 2.4L L5 2435cc; Sedan; Automatic, Primary / Base; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
2001 Volvo S60 T5; 2.3L L5 2319cc; Sedan; Automatic, Primary w/o Premair Coating
2002 Volvo S60 2.4T; 2.4L L5 2435cc; Sedan; Automatic, Primary / Base; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
2002 Volvo S60 AWD; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
2002 Volvo S60 T5; 2.3L L5 2319cc; Sedan; Automatic, Primary w/o Premair Coating
2003 Volvo S60 2.4T; 2.4L L5 2435cc; Sedan; Automatic, Primary / Base; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
2003 Volvo S60 AWD; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2003 Volvo S60 T5; 2.3L L5 2319cc; Sedan; Automatic, Primary w/o Premair Coating
2004 Volvo S60 2.4; 2.4L L5 2435cc; Sedan; Automatic, Primary / 2.5T AWD; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2004 Volvo S60 2.5T; 2.5L L5 2521cc 154ci; Sedan; Automatic, Primary w/o Premair Coating
2004 Volvo S60 2.5T; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2004 Volvo S60 R; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2004 Volvo S60 T5; 2.3L L5 2319cc; Sedan; Automatic, Primary w/o Premair Coating
2005 Volvo S60 2.4; 2.4L L5 2435cc; Sedan; Automatic, Primary / 2.5T AWD; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2005 Volvo S60 2.5T; 2.5L L5 2521cc 154ci; Sedan; Automatic, Primary w/o Premair Coating
2005 Volvo S60 2.5T; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2005 Volvo S60 R; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2005 Volvo S60 T5; 2.3L L5 2319cc; Sedan; Automatic, Primary w/o Premair Coating
2005 Volvo S60 T5; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
2006 Volvo S60 2.5T; 2.5L L5 2521cc 154ci; Sedan; Automatic, Primary w/o Premair Coating
2006 Volvo S60 2.5T; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2006 Volvo S60 R; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2006 Volvo S60 T5; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
2007 Volvo S60 2.5T; 2.5L L5 2520cc 154ci; Sedan; Automatic, Primary w/o Premair Coating
2007 Volvo S60 2.5T; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2007 Volvo S60 R; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2007 Volvo S60 T5; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
2008 Volvo S60 2.5T; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2008 Volvo S60 T5; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
2009 Volvo S60 2.5T; 2.5L L5 2521cc; Sedan; Automatic, Primary w/o Premair Coating
2009 Volvo S60 T5; 2.4L L5 2435cc; Sedan; Automatic, Primary w/o Premair Coating
1999 Volvo S80 2.9; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
1999 Volvo S80 T6; 2.8L L6 2798cc; Sedan; 2.8L L6 2798cc, Primary
2000 Volvo S80 2.9; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2000 Volvo S80 2.9; 2.9L L6 2922cc 178ci; Sedan; 2.9L L6 2922cc 178ci, Primary
2000 Volvo S80 T6; 2.8L L6 2798cc; Sedan; 2.8L L6 2798cc, Primary
2001 Volvo S80 2.9; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2001 Volvo S80 2.9; 2.9L L6 2922cc 178ci; Sedan; 2.9L L6 2922cc 178ci, Primary
2001 Volvo S80 T6; 2.8L L6 2798cc; Sedan; 2.8L L6 2798cc, Primary
2002 Volvo S80 2.9; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2002 Volvo S80 2.9; 2.9L L6 2922cc 178ci; Sedan; 2.9L L6 2922cc 178ci, Primary
2002 Volvo S80 T6; 2.8L L6 2798cc; Sedan; 2.8L L6 2798cc, Primary
2002 Volvo S80 T6; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2003 Volvo S80 2.9; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2003 Volvo S80 2.9; 2.9L L6 2922cc 178ci; Sedan; 2.9L L6 2922cc 178ci, Primary
2003 Volvo S80 T6; 2.8L L6 2798cc; Sedan; 2.8L L6 2798cc, Primary
2003 Volvo S80 T6; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2004 Volvo S80 2.5T AWD; 2.5L L5 2521cc; Sedan; 2.5L L5 2521cc, Primary / 2.5T; 2.5L L5 2521cc; Sedan; 2.5L L5 2521cc, Primary
2004 Volvo S80 2.9; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2004 Volvo S80 T6; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2005 Volvo S80 2.5T AWD; 2.5L L5 2521cc; Sedan; 2.5L L5 2521cc, Primary / 2.5T; 2.5L L5 2521cc; Sedan; 2.5L L5 2521cc, Primary
2005 Volvo S80 2.5T; 2.5L L5 2521cc 154ci; Sedan; 2.5L L5 2521cc 154ci, Primary
2005 Volvo S80 T6 Premier; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2005 Volvo S80 T6; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2006 Volvo S80 2.5T AWD; 2.5L L5 2521cc; Sedan; 2.5L L5 2521cc, Primary / 2.5T; 2.5L L5 2521cc; Sedan; 2.5L L5 2521cc, Primary
2006 Volvo S80 2.5T; 2.5L L5 2521cc 154ci; Sedan; 2.5L L5 2521cc 154ci, Primary
2006 Volvo S80 T6; 2.9L L6 2917cc; Sedan; 2.9L L6 2917cc, Primary
2001 Volvo V70 Base; 2.4L L5 2435cc; Naturally Aspirated; Wagon; 2.4L L5 2435cc, Primary
2002 Volvo V70 Base; 2.4L L5 2435cc; Naturally Aspirated; Wagon; 2.4L L5 2435cc, Primary
2003 Volvo V70 Base; 2.4L L5 2435cc; Naturally Aspirated; Wagon; 2.4L L5 2435cc, Primary
2004 Volvo V70 2.4; 2.4L L5 2435cc; Naturally Aspirated; Wagon; 2.4L L5 2435cc, Primary
2005 Volvo V70 2.4; 2.4L L5 2435cc; Wagon; 2.4L L5 2435cc, Primary / 2.5T; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary / R; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary
2005 Volvo V70 T5; 2.4L L5 2435cc; Wagon; 2.4L L5 2435cc, Primary
2006 Volvo V70 2.4; 2.4L L5 2435cc; Wagon; 2.4L L5 2435cc, Primary / 2.5T; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary / R; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary
2007 Volvo V70 2.4; 2.4L L5 2435cc; Wagon; 2.4L L5 2435cc, Primary / 2.5T; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary / R; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary
2003 Volvo XC70 X/C; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary
2004 Volvo XC70 2.5T; 2.5L L5 2521cc 154ci; Wagon; 2.5L L5 2521cc 154ci, Primary / Base; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary
2005 Volvo XC70 2.5T; 2.5L L5 2521cc 154ci; Wagon; 2.5L L5 2521cc 154ci, Primary / Base; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary
2006 Volvo XC70 2.5T; 2.5L L5 2521cc 154ci; Wagon; 2.5L L5 2521cc 154ci, Primary / Base; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary
2006 Volvo XC70 Ocean Race; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary
2007 Volvo XC70 2.5T; 2.5L L5 2521cc 154ci; Wagon; 2.5L L5 2521cc 154ci, Primary / Base; 2.5L L5 2521cc; Wagon; 2.5L L5 2521cc, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2805.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
