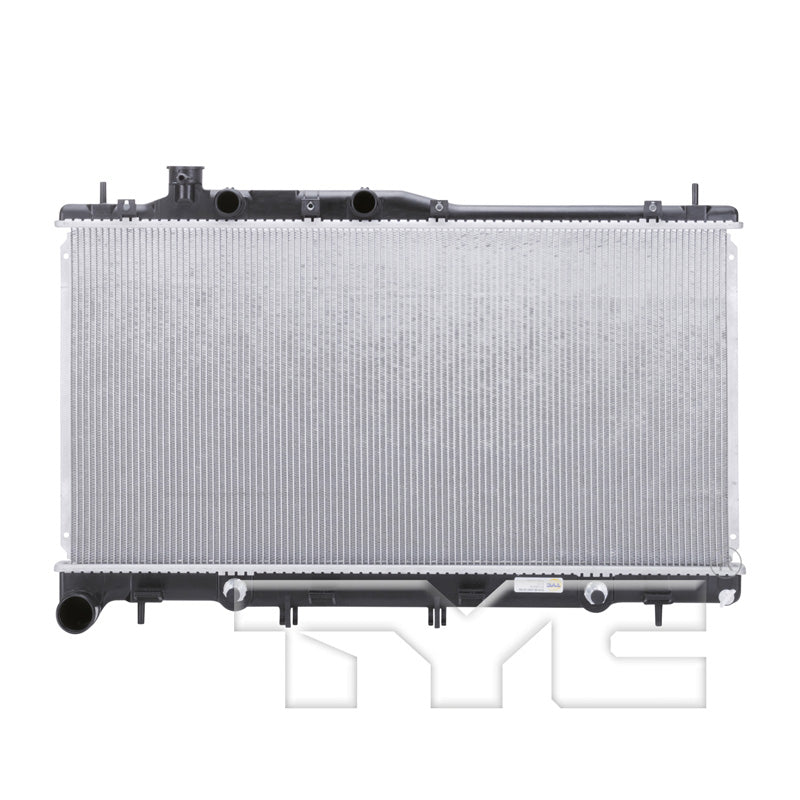

TYC 2779 Radiator Assembly for 2005-2009 Subaru Legacy

TYC 2779 Radiator Assembly for 2005-2009 Subaru Legacy
    TYC 2779 Radiator Assembly for 2005-2009 Subaru Legacy
TYC 2779 Radiator Assembly for 2005-2009 Subaru Legacy
Brand: TYC
$259.21 CAD
$259.21 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2779
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Toc Inlet Type: Tube fitting
  • Total Fin Row Count: 106
  • Toc Distance (in): 14.76
  • Tube Count (every 4"): 16
  • Core Height (in): 27.07
  • Fin Wave Pitch: 2.6
  • Inlet Connection Type: Hose Clamp
  • Outlet Diameter (in): 1.57
  • Engine Oil Cooler Included: No
  • TOC Outlet Diameter (IN): 0.39
  • Outlet Connection Type: Hose Clamp
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • TOC Inlet Diameter (IN): 0.39
  • Bottom Header: 1.71x28.34
  • Inlet Diameter (in): 1.12
  • Fin Wave Height (in): 0.2
  • Core Thickness (in): 0.63
  • No. Of Rows: 1
  • Toc Outlet Type: Tube fitting
  • Tube Width X Height: 16x1.5
  • Transmission Oil Cooler Included: Yes
  • Top Header: 1.43x28.4
  • Core Length (in): 13.78
  • Total Tube Count: 105
  • Core Material: Aluminum
  • Fin Count (every 4"): 78
  • Flow Configuration: Downflow

Package Details

  • Part Number: 2779
  • 05-08 SB LEGCY OUTBK 3.0L V6 AT 1R PA RAD
  • Package L x W x H: 20.67" x 4.92" x 29.72"
  • Package Weight: 8.80 lbs.

Interchanges

  • DENSO: 221-3607
  • CSF: 3140
  • Vista Pro: 434056
  • Subaru: 45111AG04A
  • APDI: 8012779
  • Silla Cooling: 9542
  • Spectra Premium: CU2779
  • Partslink: SU3010151

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2008 Subaru Legacy 3.0 R Limited; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2009 Subaru Legacy 3.0 R Limited; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2009 Subaru Legacy 3.0 R; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2005 Subaru Outback R L.L. Bean Edition; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2005 Subaru Outback R; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary / VDC Limited; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2006 Subaru Outback R L.L. Bean Edition; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2006 Subaru Outback R L.L. Bean Edition; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2006 Subaru Outback R VDC Limited; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary / R; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2007 Subaru Outback R L.L. Bean Edition; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2007 Subaru Outback R L.L. Bean Edition; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2008 Subaru Outback R L.L. Bean Edition; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2009 Subaru Outback 3.0 R Limited; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2779.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
