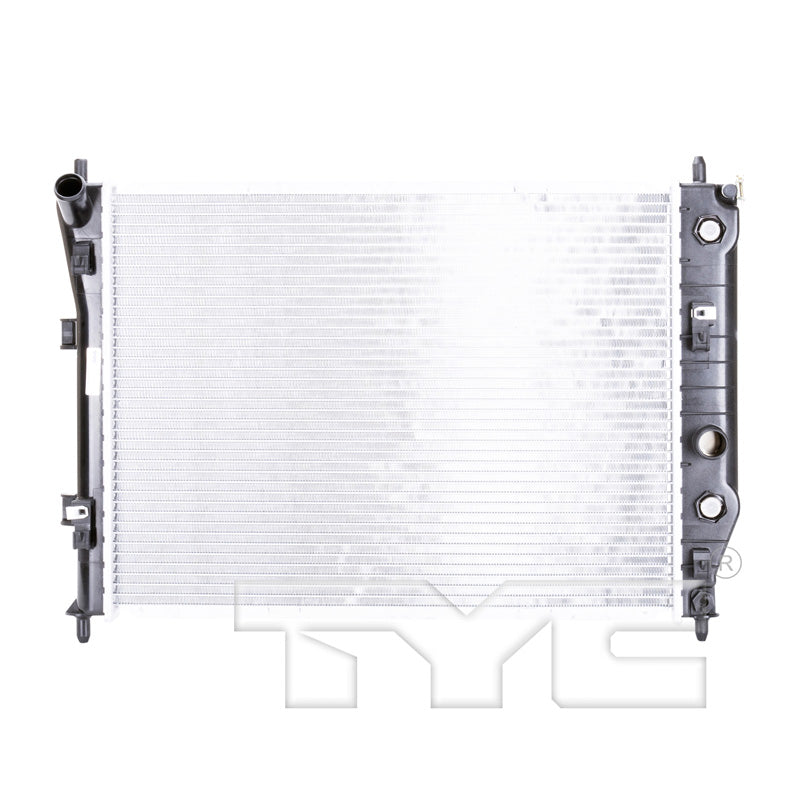

TYC 2714 Radiator Assembly for 2003-2013 Chevrolet Corvette

TYC 2714 Radiator Assembly for 2003-2013 Chevrolet Corvette
    TYC 2714 Radiator Assembly for 2003-2013 Chevrolet Corvette
TYC 2714 Radiator Assembly for 2003-2013 Chevrolet Corvette
Brand: TYC
$287.72 CAD
$287.72 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2714
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Material: Aluminum
  • Toc Distance (in): 11.50
  • Core Height (in): 17.24
  • Tube Count (every 4"): 10
  • Inlet Diameter (in): 1.3
  • Transmission Oil Cooler Included: Yes
  • Outlet Diameter (in): 1.3
  • Flow Configuration: Crossflow
  • Total Fin Row Count: 40
  • Bottom Header: 2.43x18.73
  • Core Thickness (in): 1.02
  • No. Of Rows: 1
  • Total Tube Count: 39
  • Outlet Connection Type: Hose Clamp
  • Tube Width X Height: 26x2
  • Fin Wave Pitch: 3
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Fin Wave Height (in): 0.35
  • Fin Count (every 4"): 68
  • Top Header: 2.43x18.73
  • Core Length (in): 23.43
  • Engine Oil Cooler Included: No
  • Inlet Connection Type: Hose Clamp

Package Details

  • Part Number: 2714
  • 05-13 CV CRVET 6.0/7.0L V8 AT 1R PA RAD
  • Package L x W x H: 22.05" x 6.50" x 31.10"
  • Package Weight: 11.68 lbs.

Interchanges

  • Silla Cooling: 1886
  • ACDelco: 21559
  • Chevrolet: 21996495
  • DENSO: 221-9392
  • Vista Pro: 438140
  • APDI: 8012714
  • Visteon: 8163
  • Spectra Premium: CU2714
  • Partslink: GM3010510

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2005 Chevrolet Corvette Base; 6.0L V8 5967cc 364ci; Convertible; Automatic, Primary / Base; 6.0L V8 5967cc 364ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2006 Chevrolet Corvette Base; 6.0L V8 5967cc 364ci; Convertible; Automatic, Primary / Base; 6.0L V8 5967cc 364ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2007 Chevrolet Corvette Base; 6.0L V8 5967cc 364ci; Convertible; Automatic, Primary / Base; 6.0L V8 5967cc 364ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2008 Chevrolet Corvette Base; 6.2L V8 6162cc 376ci; Convertible; Automatic, Primary / Base; 6.2L V8 6162cc 376ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2009 Chevrolet Corvette Base; 6.2L V8 6162cc 376ci; Convertible; Automatic, Primary / Base; 6.2L V8 6162cc 376ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2010 Chevrolet Corvette Base; 6.2L V8 6162cc 376ci; Convertible; Automatic, Primary / Base; 6.2L V8 6162cc 376ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2011 Chevrolet Corvette Base; 6.2L V8 6162cc 376ci; Convertible; Automatic, Primary / Base; 6.2L V8 6162cc 376ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2012 Chevrolet Corvette Base; 6.2L V8 6162cc 376ci; Convertible; Automatic, Primary / Base; 6.2L V8 6162cc 376ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2013 Chevrolet Corvette Base; 6.2L V8 6162cc 376ci; Convertible; Automatic, Primary / Base; 6.2L V8 6162cc 376ci; Hatchback; Automatic, Primary w/o Engine Oil Cooler
2003 Chevrolet SSR 5.3L V8 5328cc 325ci; Convertible; 5.3L V8 5328cc 325ci, Primary
2004 Chevrolet SSR 5.3L V8 5328cc 325ci; Convertible; 5.3L V8 5328cc 325ci, Primary
2005 Chevrolet SSR 6.0L V8 5967cc 364ci; Convertible; 6.0L V8 5967cc 364ci, Primary
2006 Chevrolet SSR 6.0L V8 5967cc 364ci; Convertible; 6.0L V8 5967cc 364ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2714.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
