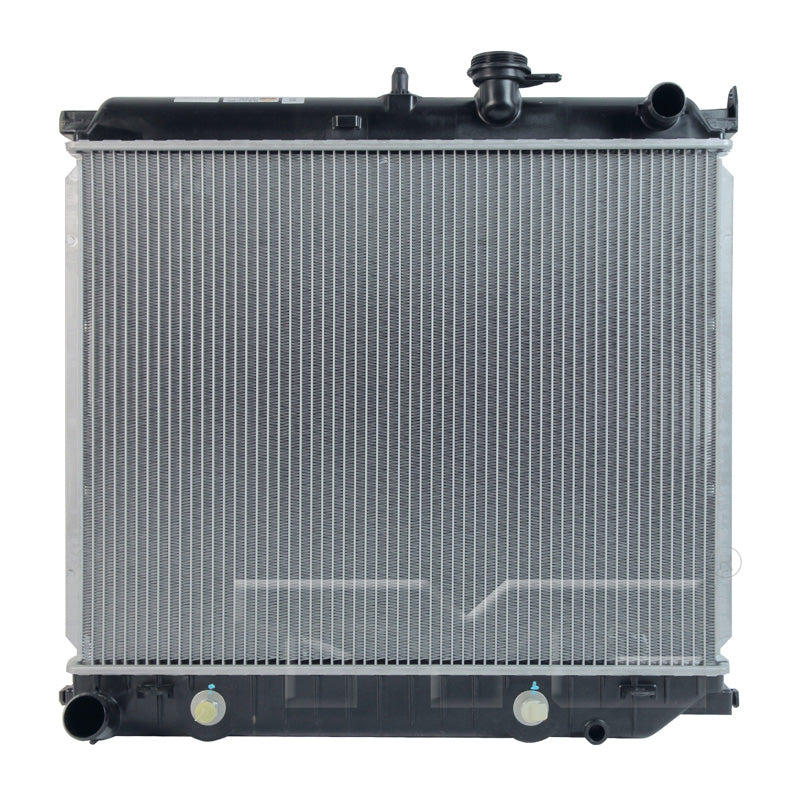

TYC 2707 Radiator Assembly for 2004-2012 Chevrolet Colorado

TYC 2707 Radiator Assembly for 2004-2012 Chevrolet Colorado
    TYC 2707 Radiator Assembly for 2004-2012 Chevrolet Colorado
TYC 2707 Radiator Assembly for 2004-2012 Chevrolet Colorado
Brand: TYC
$250.25 CAD
$250.25 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2707
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Height (in): 23.15
  • Total Fin Row Count: 59
  • Total Tube Count: 58
  • Flow Configuration: Crossflow
  • Engine Oil Cooler Included: No
  • TOC Outlet Diameter (IN): 0.37
  • Tube Width X Height: 22x2
  • Fin Count (every 4"): 68
  • Core Thickness (in): 0.87
  • No. Of Rows: 1
  • Bottom Header: 2.35x23.72
  • Inlet Connection Type: Hose Clamp
  • Inlet Diameter (in): 1.3
  • Outlet Diameter (in): 1.54
  • Fin Wave Pitch: 3
  • TOC Inlet Diameter (IN): 0.37
  • Toc Outlet Type: Quick Connect
  • Outlet Connection Type: Hose Clamp
  • Core Material: Aluminum
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Toc Inlet Type: Quick Connect
  • Toc Distance (in): 11.50
  • Fin Wave Height (in): 0.31
  • Tube Count (every 4"): 10
  • Core Length (in): 18.15
  • Top Header: 2.35x23.72
  • Transmission Oil Cooler Included: Yes

Package Details

  • Part Number: 2707
  • 04-12 CV CLRDO L4/L5 A/MT 1R PA (w/ TOC) RAD
  • Package L x W x H: 25.59" x 5.51" x 25.39"
  • Package Weight: 10.91 lbs.

Interchanges

  • GMC: 15120862
  • Chevrolet: 15120862
  • GMC: 15199308
  • Chevrolet: 15199308
  • ACDelco: 21511
  • ACDelco: 21524
  • DENSO: 221-9057
  • Performance Radiator: 2881
  • CSF: 3258
  • CSF: 3471
  • Vista Pro: 433859
  • APDI: 8012707
  • Isuzu: 8-15120-862-0
  • Isuzu: 8-15199-308-0
  • Visteon: 9494
  • Silla Cooling: 9503
  • Spectra Premium: CU2707
  • Partslink: GM3010455
  • Delphi: RA10030
  • Delphi: RA20128

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2004 Chevrolet Colorado Base; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Base; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Base; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Base; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Base; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / LS; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / LS; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / LS; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / LS; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary
2004-2005 Chevrolet Colorado Sport LS; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Sport LS; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Sport LS; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Sport LS; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Sport LS; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Sport LS; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Sport; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Sport; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Sport; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Sport; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Sport; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Sport; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 LS; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 LS; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 LS; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 LS; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 LS; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 LS; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 LS; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 LS; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 LS; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 LS; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 LS; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 LS; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary
2004-2006 Chevrolet Colorado Base; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / LS; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / LS; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary
2006 Chevrolet Colorado LT; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / LT; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / LT; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / LT; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / LT; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / LT; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / WT; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / WT; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / WT; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / WT; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary
2007-2008 Chevrolet Colorado LS; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary / LS; 2.9L L4 2921cc 178ci; Standard Cab Pickup; 2.9L L4 2921cc 178ci, Primary / LS; 3.7L L5 3654cc 223ci; Extended Cab Pickup; 3.7L L5 3654cc 223ci, Primary / LS; 3.7L L5 3654cc 223ci; Standard Cab Pickup; 3.7L L5 3654cc 223ci, Primary
2007-2012 Chevrolet Colorado LT; 2.9L L4 2921cc 178ci; Crew Cab Pickup; 2.9L L4 2921cc 178ci, Primary / LT; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary / LT; 2.9L L4 2921cc 178ci; Standard Cab Pickup; 2.9L L4 2921cc 178ci, Primary / LT; 3.7L L5 3654cc 223ci; Crew Cab Pickup; 3.7L L5 3654cc 223ci, Primary / LT; 3.7L L5 3654cc 223ci; Extended Cab Pickup; 3.7L L5 3654cc 223ci, Primary / LT; 3.7L L5 3654cc 223ci; Standard Cab Pickup; 3.7L L5 3654cc 223ci, Primary / WT; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary / WT; 2.9L L4 2921cc 178ci; Standard Cab Pickup; 2.9L L4 2921cc 178ci, Primary / WT; 3.7L L5 3654cc 223ci; Extended Cab Pickup; 3.7L L5 3654cc 223ci, Primary / WT; 3.7L L5 3654cc 223ci; Standard Cab Pickup; 3.7L L5 3654cc 223ci, Primary
2012 Chevrolet Colorado WT; 2.9L L4 2921cc 178ci; Cab & Chassis; 2.9L L4 2921cc 178ci, Primary / WT; 3.7L L5 3654cc 223ci; Cab & Chassis; 3.7L L5 3654cc 223ci, Primary
2004 GMC Canyon SL; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / SL; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / SL; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / SL; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary
2004-2005 GMC Canyon Z71 Fleet; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 Fleet; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 Fleet; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 Fleet; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 Fleet; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 Fleet; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 SL; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 SL; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 SL; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 SL; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 SL; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 SL; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 SLE; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 SLE; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 SLE; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z71 SLE; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 SLE; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z71 SLE; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 SL; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 SL; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 SL; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 SL; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 SL; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 SL; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 SLE; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 SLE; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 SLE; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / Z85 SLE; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 SLE; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / Z85 SLE; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary
2004-2006 GMC Canyon SL; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / SL; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / SLE; 2.8L L4 2770cc 169ci; Crew Cab Pickup; 2.8L L4 2770cc 169ci, Primary / SLE; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / SLE; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / SLE; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / SLE; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / SLE; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary
2006 GMC Canyon SLT; 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary / SLT; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / WT; 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary / WT; 2.8L L4 2770cc 169ci; Standard Cab Pickup; 2.8L L4 2770cc 169ci, Primary / WT; 3.5L L5 3460cc 211ci; Extended Cab Pickup; 3.5L L5 3460cc 211ci, Primary / WT; 3.5L L5 3460cc 211ci; Standard Cab Pickup; 3.5L L5 3460cc 211ci, Primary
2007-2008 GMC Canyon SL; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary / SL; 2.9L L4 2921cc 178ci; Standard Cab Pickup; 2.9L L4 2921cc 178ci, Primary
2007-2012 GMC Canyon SLE; 2.9L L4 2921cc 178ci; Crew Cab Pickup; 2.9L L4 2921cc 178ci, Primary / SLE; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary / SLE; 2.9L L4 2921cc 178ci; Standard Cab Pickup; 2.9L L4 2921cc 178ci, Primary / SLE; 3.7L L5 3654cc 223ci; Crew Cab Pickup; 3.7L L5 3654cc 223ci, Primary / SLE; 3.7L L5 3654cc 223ci; Extended Cab Pickup; 3.7L L5 3654cc 223ci, Primary / SLE; 3.7L L5 3654cc 223ci; Standard Cab Pickup; 3.7L L5 3654cc 223ci, Primary / SLT; 3.7L L5 3654cc 223ci; Crew Cab Pickup; 3.7L L5 3654cc 223ci, Primary / SLT; 3.7L L5 3654cc 223ci; Extended Cab Pickup; 3.7L L5 3654cc 223ci, Primary / WT; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary / WT; 2.9L L4 2921cc 178ci; Standard Cab Pickup; 2.9L L4 2921cc 178ci, Primary / WT; 3.7L L5 3654cc 223ci; Extended Cab Pickup; 3.7L L5 3654cc 223ci, Primary / WT; 3.7L L5 3654cc 223ci; Standard Cab Pickup; 3.7L L5 3654cc 223ci, Primary
2008-2012 GMC Canyon SLT; 2.9L L4 2921cc 178ci; Crew Cab Pickup; 2.9L L4 2921cc 178ci, Primary / SLT; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary
2006 Isuzu i-280 2.8L L4 2770cc 169ci; Extended Cab Pickup; 2.8L L4 2770cc 169ci, Primary
2007 Isuzu i-290 LS; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary
2007-2008 Isuzu i-290 S; 2.9L L4 2921cc 178ci; Extended Cab Pickup; 2.9L L4 2921cc 178ci, Primary
2006 Isuzu i-350 3.5L L5 3460cc 211ci; Crew Cab Pickup; 3.5L L5 3460cc 211ci, Primary
2007-2008 Isuzu i-370 LS; 3.7L L5 3654cc 223ci; Crew Cab Pickup; 3.7L L5 3654cc 223ci, Primary / LS; 3.7L L5 3654cc 223ci; Extended Cab Pickup; 3.7L L5 3654cc 223ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2707.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
