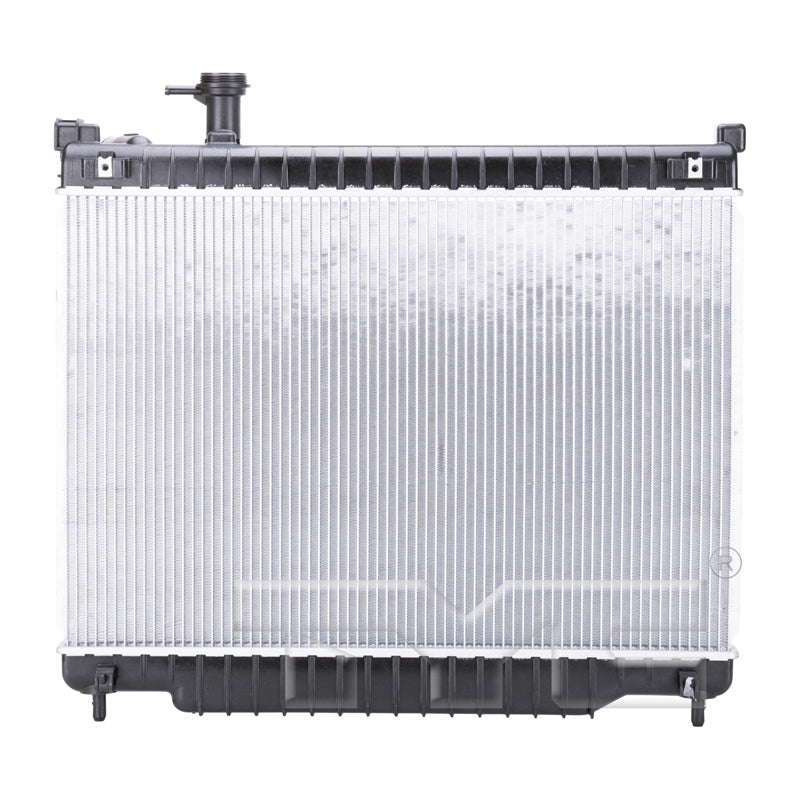

TYC 2563 Radiator Assembly for 2003-2009 Buick Rainier

TYC 2563 Radiator Assembly for 2003-2009 Buick Rainier
    TYC 2563 Radiator Assembly for 2003-2009 Buick Rainier
TYC 2563 Radiator Assembly for 2003-2009 Buick Rainier
Brand: TYC
$350.30 CAD
$350.30 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2563
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Transmission Oil Cooler Type: Plate Oil Cooler
  • No. Of Rows: 1
  • Total Tube Count: 67
  • Engine Oil Cooler Included: No
  • Bottom Header: 2.31x27.5
  • Fin Wave Height (in): 0.31
  • Core Thickness (in): 1.02
  • Outlet Diameter (in): 1.57
  • Flow Configuration: Downflow
  • Outlet Connection Type: Hose Clamp
  • Inlet Connection Type: Hose Clamp
  • Core Length (in): 18.11
  • Top Header: 2.31x27.5
  • Fin Count (every 4"): 73
  • Total Fin Row Count: 68
  • Toc Distance (in): 11.50
  • Inlet Diameter (in): 1.3
  • Fin Wave Pitch: 2.8
  • Core Material: Aluminum
  • Transmission Oil Cooler Included: Yes
  • Tube Count (every 4"): 10
  • Core Height (in): 26.69
  • Tube Width X Height: 26x2

Package Details

  • Part Number: 2563
  • 03-08 CV TBLZR 5.3/6.0L V8 AT 1R PA RAD
  • Package L x W x H: 27.95" x 6.69" x 29.33"
  • Package Weight: 14.41 lbs.

Interchanges

  • CSF: 1290
  • Saab: 15 196 386
  • Chevrolet: 15196386
  • GMC: 15196386
  • Buick: 15196386
  • ACDelco: 21506
  • DENSO: 221-9116
  • Silla Cooling: 2626
  • Performance Radiator: 2789
  • Vista Pro: 432405
  • APDI: 8012563
  • Visteon: 9652
  • Spectra Premium: CU2563
  • Tong Yang: CV37104A
  • Partslink: GM3010421
  • Delphi: RA1122
  • Reach Cooling: REA41-2563A

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2004 Buick Rainier CXL Plus; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2004 Buick Rainier CXL; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2005 Buick Rainier CXL Plus; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2005 Buick Rainier CXL; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2006 Buick Rainier CXL; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2007 Buick Rainier CXL; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2006 Chevrolet Trailblazer LS; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2006 Chevrolet Trailblazer LT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2006 Chevrolet Trailblazer SS; 6.0L V8 5967cc 364ci; Sport Utility; 6.0L V8 5967cc 364ci, Primary
2007 Chevrolet Trailblazer LS; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2007 Chevrolet Trailblazer LT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2007 Chevrolet Trailblazer SS; 6.0L V8 5967cc 364ci; Sport Utility; 6.0L V8 5967cc 364ci, Primary
2008 Chevrolet Trailblazer Base; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2008 Chevrolet Trailblazer LT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2008 Chevrolet Trailblazer SS; 6.0L V8 5967cc 364ci; Sport Utility; 6.0L V8 5967cc 364ci, Primary
2009 Chevrolet Trailblazer SS; 6.0L V8 5967cc 364ci; Sport Utility; 6.0L V8 5967cc 364ci, Primary
2003 Chevrolet Trailblazer EXT LS; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2003 Chevrolet Trailblazer EXT North Face; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2004 Chevrolet Trailblazer EXT LS; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2004 Chevrolet Trailblazer EXT North Face; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2005 Chevrolet Trailblazer EXT LS; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2006 Chevrolet Trailblazer EXT LS; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2005 GMC Envoy Denali; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2006 GMC Envoy Denali; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2007 GMC Envoy Denali; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2008 GMC Envoy Denali; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2009 GMC Envoy Denali; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2003 GMC Envoy XL SLE; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / SLT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2004 GMC Envoy XL SLE; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / SLT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2005 GMC Envoy XL Denali; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2005 GMC Envoy XL SLE; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / SLT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2006 GMC Envoy XL Denali; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2004 GMC Envoy XUV SLE; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / SLT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2005 GMC Envoy XUV SLE; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary / SLT; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2005 Saab 9-7x Arc; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2006 Saab 9-7x 5.3i; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2007 Saab 9-7x 5.3i; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2008 Saab 9-7x 5.3i; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2008 Saab 9-7x Aero; 6.0L V8 5967cc 364ci; Sport Utility; 6.0L V8 5967cc 364ci, Primary
2009 Saab 9-7x 5.3i; 5.3L V8 5328cc 325ci; Sport Utility; 5.3L V8 5328cc 325ci, Primary
2009 Saab 9-7x Aero; 6.0L V8 5967cc 364ci; Sport Utility; 6.0L V8 5967cc 364ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2563.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
