Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Total Fin Row Count: 74
• Core Length (in): 17.72
• Core Thickness (in): 0.63
• Fin Count (every 4"): 73
• Engine Oil Cooler Included: No
• Inlet Diameter (in): 1.34
• No. Of Rows: 1
• Core Material: Aluminum
• Tube Width X Height: 16x2
• Outlet Connection Type: Hose Clamp
• Outlet Diameter (in): 1.38
• Transmission Oil Cooler Included: Yes
• TOC Outlet Diameter (IN): 0.39
• Fin Wave Height (in): 0.31
• Core Height (in): 29.06
• Fin Wave Pitch: 2.8
• Transmission Oil Cooler Type: Concentric Oil Cooler
• Top Header: 1.44x29.9
• Toc Outlet Type: Tube fitting
• TOC Inlet Diameter (IN): 0.39
• Flow Configuration: Downflow
• Tube Count (every 4"): 10
• Toc Distance (in): 14.76
• Bottom Header: 2.04x29.9
• Total Tube Count: 73
• Inlet Connection Type: Hose Clamp
• Toc Inlet Type: Tube fitting

Package Details

• Part Number: 2542

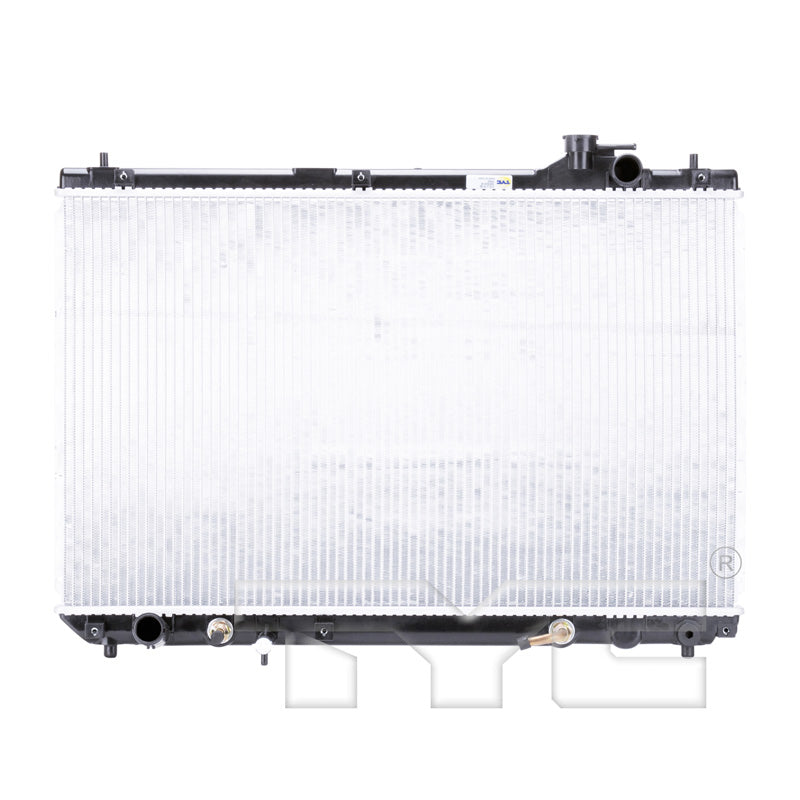

• 01-03 LX RX-300 3.0L V6 AT 1R PA (STD) RAD
• Package L x W x H: 24.61" x 6.10" x 31.10"
• Package Weight: 9.94 lbs.

Interchanges

• Lexus: 16400-20190
• DENSO: 221-3166
• Vista Pro: 432443
• Silla Cooling: 7296
• APDI: 8012272
• Spectra Premium: CU2543
• Partslink: LX3010111

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2542.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
