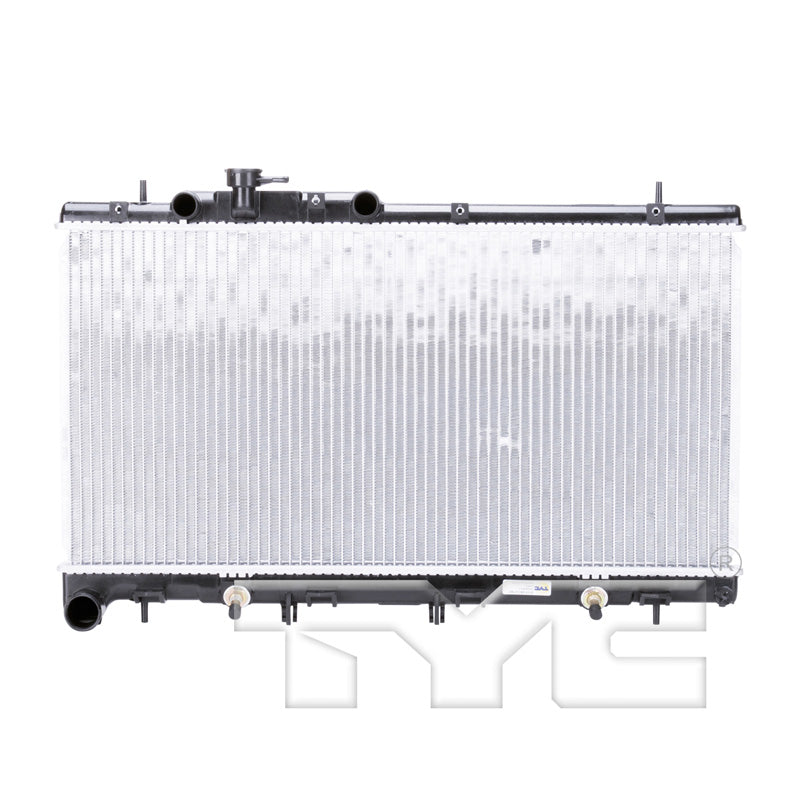

TYC 2465 Radiator Assembly for 2001-2004 Subaru Outback

TYC 2465 Radiator Assembly for 2001-2004 Subaru Outback
    TYC 2465 Radiator Assembly for 2001-2004 Subaru Outback
TYC 2465 Radiator Assembly for 2001-2004 Subaru Outback
Brand: TYC
$17.92 CAD
$17.92 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2465
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Flow Configuration: Downflow
  • Total Tube Count: 62
  • Fin Wave Pitch: 2.8
  • Tube Count (every 4"): 10
  • Toc Distance (in): 14.76
  • No. Of Rows: 1
  • Bottom Header: 2.03x28.37
  • Core Thickness (in): 1.02
  • Fin Count (every 4"): 73
  • Transmission Oil Cooler Included: Yes
  • Core Material: Aluminum
  • Outlet Connection Type: Hose Clamp
  • Inlet Diameter (in): 1.14
  • Tube Width X Height: 26x2
  • Top Header: 2.03x28.37
  • Total Fin Row Count: 63
  • Fin Wave Height (in): 0.35
  • Engine Oil Cooler Included: No
  • Outlet Diameter (in): 1.5
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Inlet Connection Type: Hose Clamp
  • Core Height (in): 27.2
  • Core Length (in): 13.78

Package Details

  • Part Number: 2465
  • 00-04 SB OUTBK 3.0L H6 AT 1R PA RAD
  • Package L x W x H: 20.47" x 5.12" x 29.72"
  • Package Weight: 10.76 lbs.

Interchanges

  • CSF: 2206
  • DENSO: 221-3608
  • Vista Pro: 433905
  • Subaru: 45111AE06A
  • APDI: 8012465
  • Visteon: 9783
  • Spectra Premium: CU2465
  • Reach Cooling: REA41-2465A
  • Partslink: SU3010111

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2001 Subaru Outback L.L. Bean; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2001 Subaru Outback VDC; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2002 Subaru Outback H6; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2002 Subaru Outback L.L. Bean; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2002 Subaru Outback VDC; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2002 Subaru Outback VDC; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2003 Subaru Outback H6; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2003 Subaru Outback H6; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2003 Subaru Outback L.L. Bean; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2003 Subaru Outback VDC; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2003 Subaru Outback VDC; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2004 Subaru Outback H6 35th Anniversary Edition; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary / H6 VDC; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary / H6 VDC; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2004 Subaru Outback H6; 3.0L H6 3000cc; Sedan; 3.0L H6 3000cc, Primary
2004 Subaru Outback H6; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary
2004 Subaru Outback L.L. Bean; 3.0L H6 3000cc; Wagon; 3.0L H6 3000cc, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2465.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
