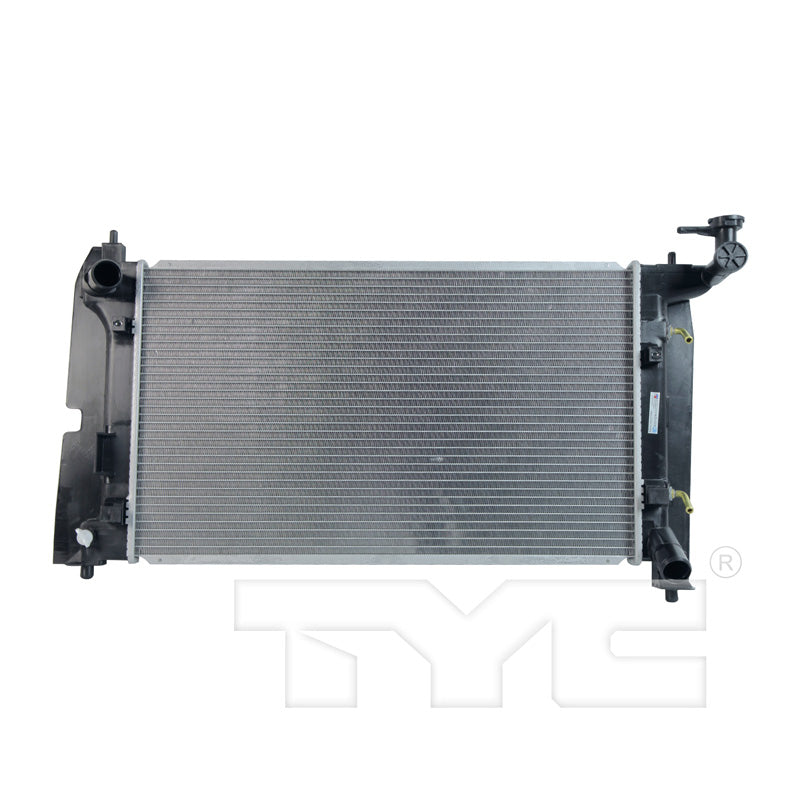

TYC 2428 Radiator Assembly for 2003-2008 Pontiac Vibe

TYC 2428 Radiator Assembly for 2003-2008 Pontiac Vibe
    TYC 2428 Radiator Assembly for 2003-2008 Pontiac Vibe
TYC 2428 Radiator Assembly for 2003-2008 Pontiac Vibe
Brand: TYC
$186.20 CAD
$186.20 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2428
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Total Fin Row Count: 35
  • Core Length (in): 23.62
  • Inlet Diameter (in): 1.34
  • Outlet Connection Type: Hose Clamp
  • Inlet Connection Type: Hose Clamp
  • Flow Configuration: Crossflow
  • Core Thickness (in): 0.63
  • Bottom Header: 1.72x14.79
  • Tube Count (every 4"): 10
  • Fin Wave Pitch: 3.2
  • Core Height (in): 13.7
  • Transmission Oil Cooler Included: Yes
  • Tube Width X Height: 16x2
  • Engine Oil Cooler Included: No
  • No. Of Rows: 1
  • Total Tube Count: 34
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Fin Wave Height (in): 0.31
  • Outlet Diameter (in): 1.34
  • Fin Count (every 4"): 64
  • Top Header: 1.44x14.79
  • Toc Distance (in): 7.87
  • Core Material: Aluminum

Package Details

  • Part Number: 2428
  • 03-08 TY CROLA/MTRX 1.8/2.0L L4 A/MT 1R PA RAD
  • Package L x W x H: 19.49" x 6.50" x 34.06"
  • Package Weight: 8.03 lbs.

Interchanges

  • CSF: 1178
  • Toyota: 16410-AZ001
  • CSF: 19
  • ACDelco: 21458
  • DENSO: 221-0514
  • Performance Radiator: 2771
  • CSF: 2818
  • Vista Pro: 432456
  • APDI: 8012428
  • Silla Cooling: 8210
  • Pontiac: 88969096
  • Visteon: 9790
  • Spectra Premium: CU2428
  • Partslink: TO3010271
  • Tong Yang: TY37054A

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2003 Pontiac Vibe 1.8L L4 1794cc; Wagon; Automatic, Primary
2004 Pontiac Vibe 1.8L L4 1794cc; Wagon; Automatic, Primary
2005 Pontiac Vibe 1.8L L4 1794cc; Wagon; Automatic, Primary
2006 Pontiac Vibe 1.8L L4 1794cc; Wagon; Automatic, Primary
2007 Pontiac Vibe 1.8L L4 1794cc; Wagon; Automatic, Primary
2008 Pontiac Vibe 1.8L L4 1794cc; Wagon; Automatic, Primary
2003 Toyota Corolla CE; 1.8L L4 1794cc; Sedan; Automatic, Primary / LE; 1.8L L4 1794cc; Sedan; Automatic, Primary / S; 1.8L L4 1794cc; Sedan; Automatic, Primary
2004 Toyota Corolla CE; 1.8L L4 1794cc; Sedan; Automatic, Primary / LE; 1.8L L4 1794cc; Sedan; Automatic, Primary / S; 1.8L L4 1794cc; Sedan; Automatic, Primary
2005 Toyota Corolla CE; 1.8L L4 1794cc; Sedan; Automatic, Primary / LE; 1.8L L4 1794cc; Sedan; Automatic, Primary / S; 1.8L L4 1794cc; Sedan; Automatic, Primary
2006 Toyota Corolla CE; 1.8L L4 1794cc; Sedan; Automatic, Primary / LE; 1.8L L4 1794cc; Sedan; Automatic, Primary / S; 1.8L L4 1794cc; Sedan; Automatic, Primary
2007 Toyota Corolla CE; 1.8L L4 1794cc; Sedan; Automatic, Primary / LE; 1.8L L4 1794cc; Sedan; Automatic, Primary / S; 1.8L L4 1794cc; Sedan; Automatic, Primary
2008 Toyota Corolla CE; 1.8L L4 1794cc; Sedan; Automatic, Primary / LE; 1.8L L4 1794cc; Sedan; Automatic, Primary / S; 1.8L L4 1794cc; Sedan; Automatic, Primary
2003 Toyota Matrix Base; 1.8L L4 1794cc; Wagon; Automatic, Primary / XR; 1.8L L4 1794cc; Wagon; Automatic, Primary
2003 Toyota Matrix XRS; 1.8L L4 1795cc; Wagon; Automatic, Primary
2004 Toyota Matrix Base; 1.8L L4 1794cc; Wagon; Automatic, Primary / XR; 1.8L L4 1794cc; Wagon; Automatic, Primary
2005 Toyota Matrix Base; 1.8L L4 1794cc; Wagon; Automatic, Primary / XR; 1.8L L4 1794cc; Wagon; Automatic, Primary
2006 Toyota Matrix Base; 1.8L L4 1794cc; Wagon; Automatic, Primary / XR; 1.8L L4 1794cc; Wagon; Automatic, Primary
2007 Toyota Matrix Base; 1.8L L4 1794cc; Wagon; Automatic, Primary / XR; 1.8L L4 1794cc; Wagon; Automatic, Primary
2008 Toyota Matrix Base; 1.8L L4 1794cc; Wagon; Automatic, Primary / XR; 1.8L L4 1794cc; Wagon; Automatic, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2428.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
