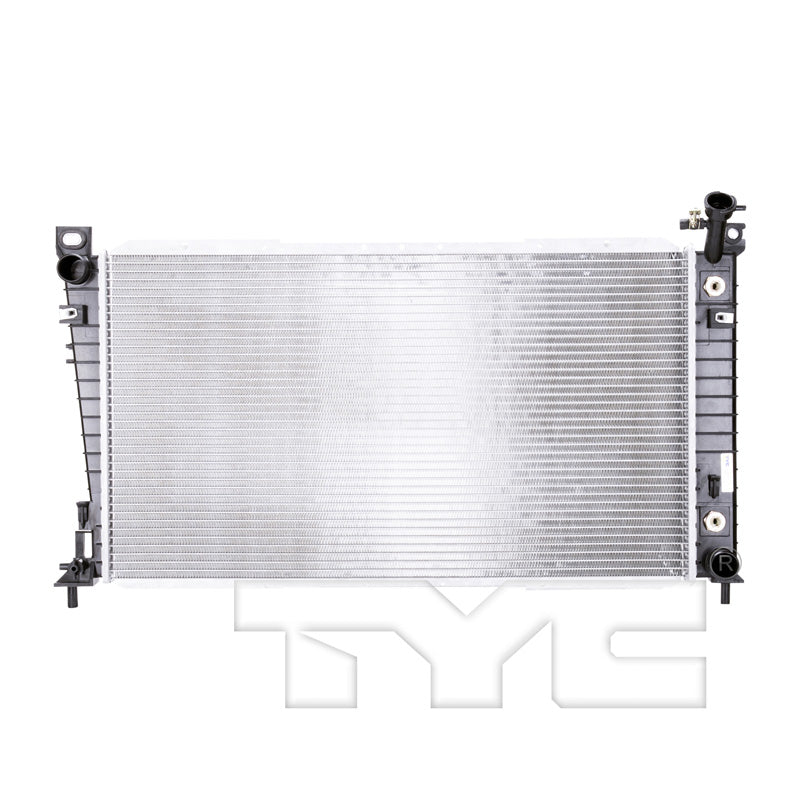

TYC 1609 Radiator Assembly for 1995-1998 Ford Windstar

TYC 1609 Radiator Assembly for 1995-1998 Ford Windstar
    TYC 1609 Radiator Assembly for 1995-1998 Ford Windstar
TYC 1609 Radiator Assembly for 1995-1998 Ford Windstar
Brand: TYC
$377.64 CAD
$377.64 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

1609
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Total Tube Count: 38
  • Transmission Oil Cooler Included: Yes
  • Outlet Connection Type: Hose Clamp
  • Outlet Diameter (in): 1.5
  • Fin Wave Height (in): 0.35
  • Tube Count (every 4"): 10
  • No. Of Rows: 1
  • Fin Wave Pitch: 3.6
  • Inlet Connection Type: Hose Clamp
  • Toc Inlet Type: Tube fitting
  • Inlet Diameter (in): 1.5
  • Core Length (in): 29.92
  • Top Header: 1.97x17.28
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Engine Oil Cooler Included: No
  • Accessories Included: Hose Rubber and clamp (Diam. 8.) x 1
  • TOC Inlet Diameter (IN): 0.33
  • Toc Outlet Type: Tube fitting
  • Toc Distance (in): 12.01
  • Core Height (in): 16.81
  • Flow Configuration: Crossflow
  • TOC Outlet Diameter (IN): 0.33
  • Core Material: Aluminum
  • Bottom Header: 3.14x17.29
  • Core Thickness (in): 1.02
  • Tube Width X Height: 26x2
  • Fin Count (every 4"): 56
  • Total Fin Row Count: 39

Package Details

  • Part Number: 1609
  • 95-98 FD WDSTR 3.0/3.8L V6 AT 1R PA RAD
  • Package L x W x H: 23.03" x 7.68" x 37.01"
  • Package Weight: 14.03 lbs.

Interchanges

  • DENSO: 221-9126
  • Silla Cooling: 2373
  • Vista Pro: 432373
  • APDI: 8011609
  • Visteon: 9369
  • Spectra Premium: CU1609
  • Ford: F78Z 8005 AA
  • Tong Yang: FD37045A
  • Partslink: FO3010179

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
1995 Ford Windstar Base; 3.0L V6 2986cc 182ci; Mini Cargo Van; 3.0L V6 2986cc 182ci, Primary / Base; 3.8L V6 232ci; Mini Cargo Van; 3.8L V6 232ci, Primary / GL; 3.0L V6 2986cc 182ci; Mini Passenger Van; 3.0L V6 2986cc 182ci, Primary / GL; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary / LX; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary
1996 Ford Windstar Base; 3.0L V6 2986cc 182ci; Mini Cargo Van; 3.0L V6 2986cc 182ci, Primary / Base; 3.8L V6 232ci; Mini Cargo Van; 3.8L V6 232ci, Primary / GL; 3.0L V6 2986cc 182ci; Mini Passenger Van; 3.0L V6 2986cc 182ci, Primary / GL; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary / LX; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary
1997 Ford Windstar Base; 3.0L V6 2986cc 182ci; Mini Cargo Van; 3.0L V6 2986cc 182ci, Primary / Base; 3.8L V6 232ci; Mini Cargo Van; 3.8L V6 232ci, Primary / GL; 3.0L V6 2986cc 182ci; Mini Passenger Van; 3.0L V6 2986cc 182ci, Primary / GL; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary / LX; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary
1998 Ford Windstar 3.0L; 3.0L V6 2986cc 182ci; Mini Passenger Van; 3.0L V6 2986cc 182ci, Primary / Base; 3.0L V6 2986cc 182ci; Mini Passenger Van; 3.0L V6 2986cc 182ci, Primary / Base; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary / Limited; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary
1998 Ford Windstar Base; 3.0L V6 2986cc 182ci; Mini Cargo Van; 3.0L V6 2986cc 182ci, Primary / Base; 3.8L V6 232ci; Mini Cargo Van; 3.8L V6 232ci, Primary / GL; 3.0L V6 2986cc 182ci; Mini Passenger Van; 3.0L V6 2986cc 182ci, Primary / GL; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary / LX; 3.8L V6 232ci; Mini Passenger Van; 3.8L V6 232ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 1609.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
