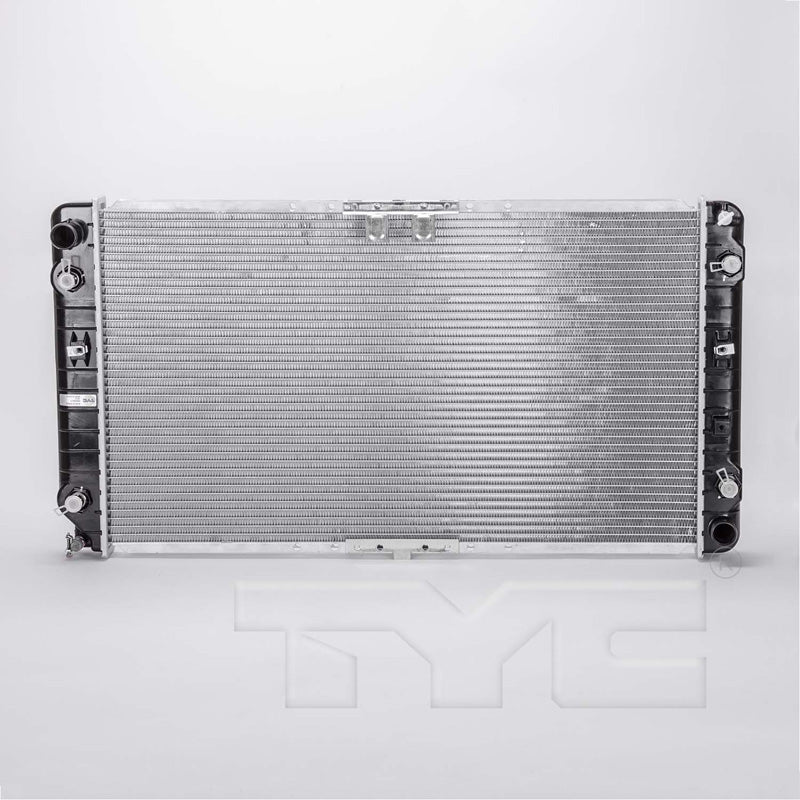

TYC 1517 Radiator Assembly for 1994-1996 Buick Roadmaster

TYC 1517 Radiator Assembly for 1994-1996 Buick Roadmaster
    TYC 1517 Radiator Assembly for 1994-1996 Buick Roadmaster
TYC 1517 Radiator Assembly for 1994-1996 Buick Roadmaster
Brand: TYC
$385.18 CAD
$385.18 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

1517
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • TOC Outlet Diameter (IN): 1/2-20UNF
  • EOC Inlet Type: adapter
  • No. Of Rows: 1
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Tube Width X Height: 32x2
  • Toc Distance (in): 11.50
  • Core Length (in): 30.51
  • Fin Wave Pitch: 3.6
  • EOC Distance (IN): 11.50
  • EOC Inlet Diameter (mm): 5/8-18UNF
  • TOC Inlet Diameter (IN): 1/2-20UNF
  • Toc Inlet Type: Adapter
  • Inlet Connection Type: Hose Clamp
  • Fin Count (every 4"): 56
  • Inlet Diameter (in): 1.3
  • Engine Oil Cooler Included: Yes
  • Total Fin Row Count: 40
  • Tube Count (every 4"): 10
  • EOC Outlet Type: adapter
  • Outlet Connection Type: Hose Clamp
  • Core Thickness (in): 1.26
  • Transmission Oil Cooler Included: Yes
  • Bottom Header: 2.43x18.73
  • EOC Outlet Diameter (IN): 5/8-18UNF
  • Core Material: Aluminum
  • Core Height (in): 17.24
  • Flow Configuration: Crossflow
  • Total Tube Count: 39
  • EOC Inlet Diameter (IN): 5/8-18UNF
  • Engine Oil Cooler Type: Concentric Oil Cooler
  • Top Header: 2.43x18.73
  • Toc Outlet Type: Adapter
  • Fin Wave Height (in): 0.35
  • Outlet Diameter (in): 1.3

Package Details

  • Part Number: 1517
  • 94-96 CV CPRICE 4.3/5.7L V8 A/MT 1R PA (W/ EOC) RAD
  • Package L x W x H: 20.47" x 5.71" x 36.81"
  • Package Weight: 15.22 lbs.

Interchanges

  • Vista Pro: 432396
  • Chevrolet: 52470705
  • Cadillac: 52470705
  • Buick: 52470705
  • APDI: 8011517
  • Spectra Premium: CU1517
  • Partslink: GM3010138

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
1994 Buick Roadmaster Base; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Estate Wagon; 5.7L V8 350ci; Wagon; 5.7L V8 350ci, Primary / Limited; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary
1995 Buick Roadmaster Base; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Estate Wagon; 5.7L V8 350ci; Wagon; 5.7L V8 350ci, Primary / Limited; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary
1996 Buick Roadmaster Collector's Edition; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Estate Wagon Collector's Edition; 5.7L V8 350ci; Wagon; 5.7L V8 350ci, Primary / Limited Collector's Edition; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary
1994 Cadillac Fleetwood Base; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Brougham; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary w/ Mechanical Fan
1995 Cadillac Fleetwood Base; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Brougham; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary w/ Mechanical Fan
1996 Cadillac Fleetwood Base; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Brougham; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary w/ Mechanical Fan
1994 Chevrolet Caprice Classic LS; 4.3L V8 265ci; Sedan; 4.3L V8 265ci, Primary / Classic LS; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary Hvy Duty; w/ Engine Oil Cooler
1994 Chevrolet Caprice Classic; 4.3L V8 265ci; Sedan; 4.3L V8 265ci, Primary / Classic; 4.3L V8 265ci; Wagon; 4.3L V8 265ci, Primary / Classic; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Classic; 5.7L V8 350ci; Wagon; 5.7L V8 350ci, Primary Hvy Duty; w/ Engine Oil Cooler
1995 Chevrolet Caprice Classic; 4.3L V8 265ci; Sedan; 4.3L V8 265ci, Primary / Classic; 4.3L V8 265ci; Wagon; 4.3L V8 265ci, Primary / Classic; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Classic; 5.7L V8 350ci; Wagon; 5.7L V8 350ci, Primary Hvy Duty; w/ Engine Oil Cooler
1996 Chevrolet Caprice Classic; 4.3L V8 265ci; Sedan; 4.3L V8 265ci, Primary / Classic; 4.3L V8 265ci; Wagon; 4.3L V8 265ci, Primary / Classic; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary / Classic; 5.7L V8 350ci; Wagon; 5.7L V8 350ci, Primary Hvy Duty; w/ Engine Oil Cooler
1994 Chevrolet Impala SS; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary Hvy Duty; w/ Engine Oil Cooler
1995 Chevrolet Impala SS; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary Hvy Duty; w/ Engine Oil Cooler
1996 Chevrolet Impala SS; 5.7L V8 350ci; Sedan; 5.7L V8 350ci, Primary Hvy Duty; w/ Engine Oil Cooler

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 1517.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
