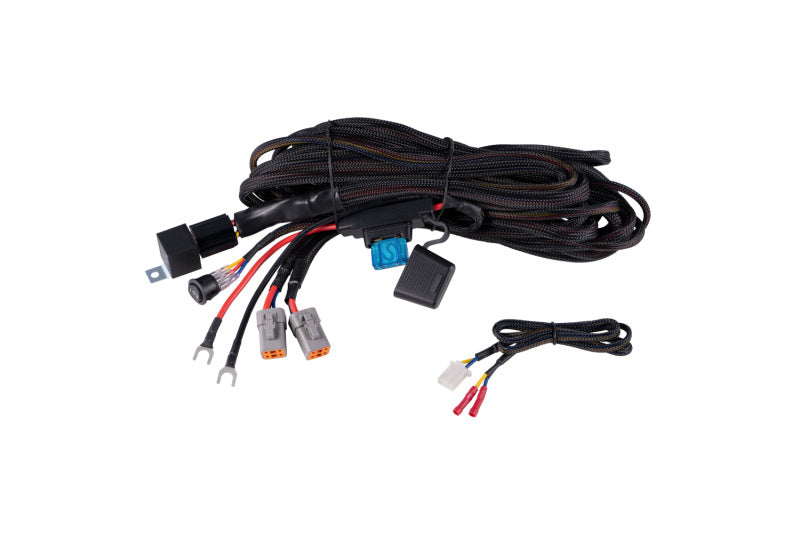

Features Powers 5-8 Pod SS5 CrossLink Pro Lightbars. Connects directly to the battery to power your LED pods. High capacity 10AWG wiring. Dual Deutsch DT-P output connectors. 60A waterproof fuse, and 80A 12V relay to safeguard the electrical systems in your pods. Overview Stage Series. This harness has been designed specifically to safely power CrossLink Pro Lightbars with five (5) to eight (8) SS5 Pro LED Pods. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. You have the option to control your pods using the included three-way switch to toggle between the backlight, off, and the main beam, or control them through your Auxiliary Switch Bank with the included adapter. This harness uses high capacity 10AWG wiring and a Deutsch DT-P connector for simple plug-and-play installation. This harness safely powers up to 60A of auxiliary lamps. The SS5 Pro draws 6.7A per pod. Compatibility Please note that this harness has two DT-P size output connectors. These are intended to connect to a corresponding Ultra-Heavy-Duty (UHD) SS5 Splitter harness, to build a multi-pod lightbar. These connectors will not plug directly into any LED product offered by Diode Dynamics.

• 60A waterproof fuse and 80A 12V relay to safeguard the electrical systems in your pods
• Connects directly to the battery to power your LED pods
• Powers 5-8 Pod SS5 CrossLink Pro Lightbars
• Dual Deutsch DT-P output connectors
• High capacity 10AWG wiring
