Aeromotive Phantom 200 Fuel System - Return Style w/Y-Block

Marque : Aeromotive
Prix habituel
$2,440.21 CAD
Prix soldé
$2,440.21 CAD
Prix habituel
$2,338.54 CAD
Frais de port calculés à la caisse.

UGS:AER17165

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.
Estimate Delivery Time
Enter your postal code or ZIP code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Description du produit

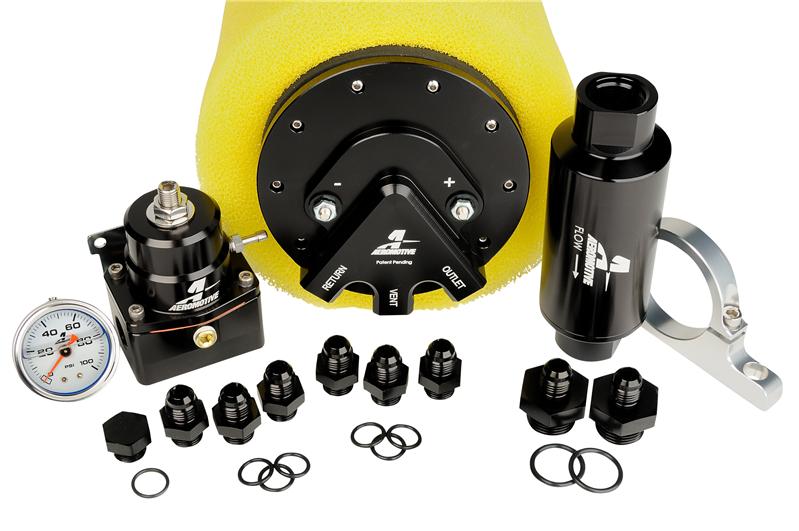

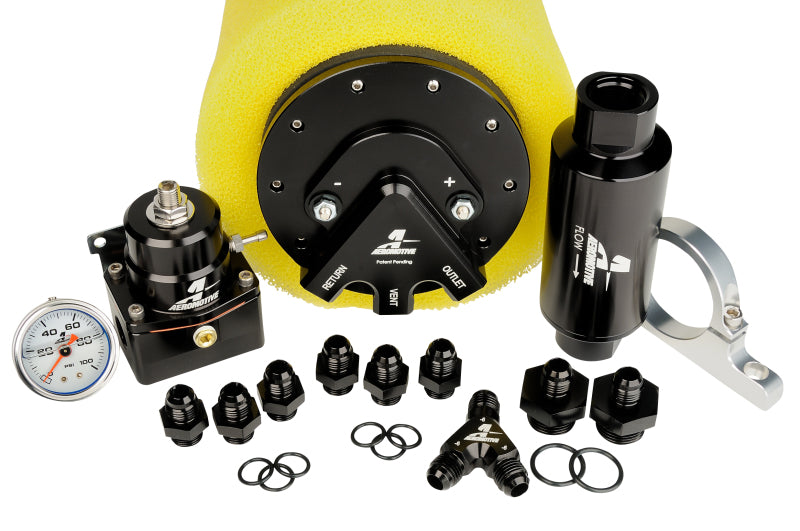

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200?LPH fuel pump.? Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 ? 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18689 Phantom 200, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 AN-06 Y-Block.
