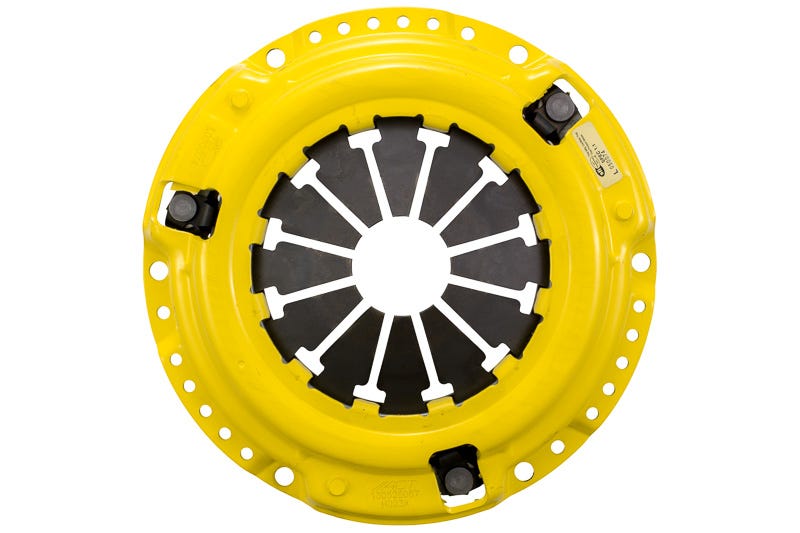

ACT H023X P/PL Xtreme for 1997–2005 Acura EL

ACT H023X P/PL Xtreme for 1997–2005 Acura EL
    ACT H023X P/PL Xtreme for 1997–2005 Acura EL
ACT H023X P/PL Xtreme for 1997–2005 Acura EL
Marque : ACT
$712.29 CAD
$712.29 CAD
Frais de port calculés à la caisse.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

H023X
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Description du produit

ACT Xtreme Pressure Plates are made from the highest quality materials, and guarantee to deliver superior functionality and durability. They are CNC-machined for consistency and accuracy and are computer-balanced for smooth operation at high rpm. These products provide a clamp load increase up to 120% with a moderate-to-stiff pedal feel.

Key Features:

  • 212mm upgrade. Must be used with 90-01 SOHC flywheel
  • Product Weight (lbs.): 7.4
  • Moderate to heavy pedal effort, positive engagement
  • Available life extended by ACT's exclusive diaphragm design
  • Carefully engineered for improved durability, precisely assembled, accurately balanced
  • Recommended for street and race use
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

H023X is an ACT Xtreme pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc.
Since 1994, Advanced Clutch Technology has specialized in performance clutches and flywheels. All products are made from the highest quality materials and then necessarily tested to ensure they perform to the customers' expectations.

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
1997 Acura EL Trim: BASE; Engine: 1.6L
1998 Acura EL Trim: BASE; Engine: 1.6L
1999 Acura EL Trim: BASE; Engine: 1.6L
2000 Acura EL Trim: BASE; Engine: 1.6L
2001 Acura EL Trim: BASE; Engine: 1.7L
2002 Acura EL Trim: BASE; Engine: 1.7L
2003 Acura EL Trim: BASE; Engine: 1.7L
2004 Acura EL Trim: BASE; Engine: 1.7L
2005 Acura EL Trim: BASE; Engine: 1.7L
1988 Honda Civic Trim: BASE, DX, LX, RT 4WD, WAGOVAN; Engine: 1.5L, 1.6L; Front Wheel Drive
1989 Honda Civic Trim: BASE, DX, LX, RT 4WD, Si, WAGOVAN; Engine: 1.5L, 1.6L; 4 Wheel Drive, Front Wheel Drive
1990 Honda Civic Trim: BASE, DX, EX, LX, RT 4WD, Si; Engine: 1.5L, 1.6L; 4 Wheel Drive, Front Wheel Drive
1991 Honda Civic Trim: BASE, DX, EX, LX, RT 4WD, Si; Engine: 1.5L, 1.6L; 4 Wheel Drive, Front Wheel Drive
1992 Honda Civic Trim: CX, DX, EX, LX, Si, VX; Engine: 1.5L, 1.6L
1993 Honda Civic Trim: CX, DX, EX, LX, Si, VX; Engine: 1.5L, 1.6L
1994 Honda Civic Trim: CX, DX, EX, LX, Si, VX; Engine: 1.5L, 1.6L
1995 Honda Civic Trim: CX, DX, EX, LX, Si, VX; Engine: 1.5L, 1.6L
1996 Honda Civic Trim: CX, DX, EX, HX, LX, Si; Engine: 1.6L
1997 Honda Civic Trim: CX, DX, EX, EX-R, HX, LX, Si; Engine: 1.6L
1998 Honda Civic Trim: CX, DX, EX, EX-R, HX, LX, Si; Engine: 1.6L
1999 Honda Civic Trim: CX, DX, EX, EX-R, HX, LX; Engine: 1.6L
2000 Honda Civic Trim: CX, DX, EX, EX-R, HX, LX; Engine: 1.6L
2001 Honda Civic Trim: DX, EX, HX, LX; Engine: 1.7L
2002 Honda Civic Trim: DX, EX, HX, LX, Si; Engine: 1.7L
2003 Honda Civic Trim: DX, EX, HX, LX, Si; Engine: 1.7L
2004 Honda Civic Trim: DX, EX, HX, LX, Si, VALUE PACKAGE; Engine: 1.7L
2005 Honda Civic Trim: DX, EX, EX Special Edition, HX, LX, LX SPECIAL EDITION, REVERB, Si, VALUE PACKAGE; Engine: 1.7L
1993 Honda Civic DEL SOL Trim: S, Si; Engine: 1.5L, 1.6L
1994 Honda Civic DEL SOL Trim: S, Si; Engine: 1.5L, 1.6L
1995 Honda Civic DEL SOL Trim: S, Si; Engine: 1.5L, 1.6L
1996 Honda Civic DEL SOL Trim: S, Si; Engine: 1.6L
1997 Honda Civic DEL SOL Trim: S, Si; Engine: 1.6L
1988 Honda CRX Trim: DX, HF, Si; Engine: 1.5L, 1.6L; Front Wheel Drive
1989 Honda CRX Trim: BASE, HF, Si; Engine: 1.5L, 1.6L; Front Wheel Drive
1990 Honda CRX Trim: BASE, HF, Si; Engine: 1.5L, 1.6L; Front Wheel Drive
1991 Honda CRX Trim: BASE, HF, Si; Engine: 1.5L, 1.6L; Front Wheel Drive

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the compatibility table above before purchase.

What part number is this?
The listed part number is H023X.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the fitment table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the fitment table before ordering.
